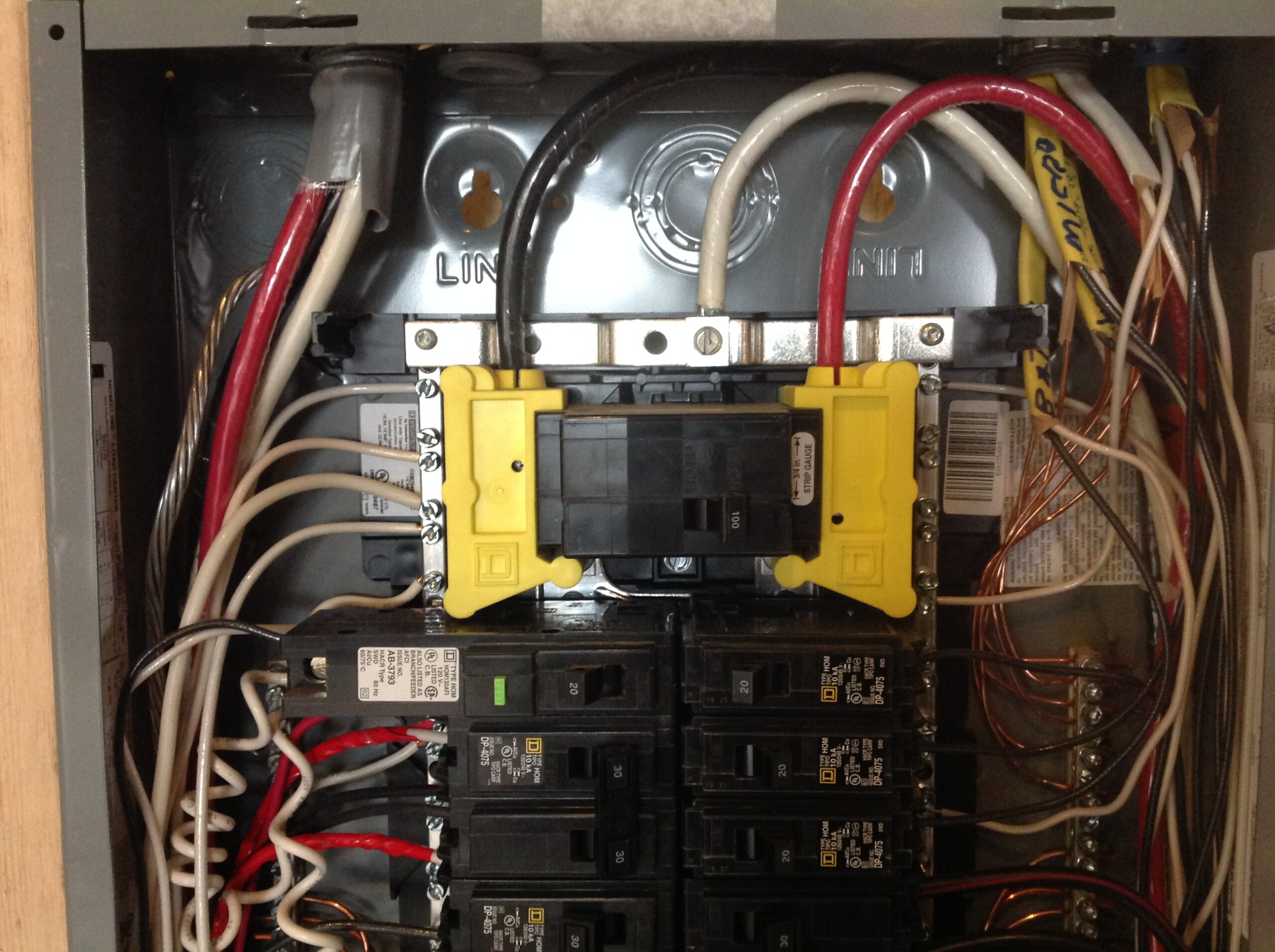

1. 003 – Oregon Rule and Law Version 2023

1

Return of the minor label log sheet to the division or proper jurisdiction shall be: when all the labels in the lot are used, or ________ from the date of sale; whichever occurs first

12 months
6 months
9 months
90 day

Reference : 918-100-0050

2. 084 – Oregon Rule and Law Version 2023

1

The 2023 NEC has now begun to address cybersecurity for network-connected life safety equipment. In Oregon the permit holder ________ demonstrate compliance with this requirement for this type of installation.

Is not required to
Shall not
Is recommended to
Is required to

Reference : Table 1-E 110.3(A)(8)

3. 011 – Oregon Rule and Law Version 2023

1

A limited supervising electrician may direct an electrical installation in an existing _________.

Hospital
Duplex
Dwelling Unit
Multifamily structure

Reference : 918-282-0160

4. 035 – Oregon Rule and Law Version 2023

1

In a dormitory unit, AFCI protection shall not be required for 120 volt, single phase, 15 and 20 ampere branch circuits supplying receptacles located in

Bathrooms
Closets
Hallways
Living rooms

Reference : Table 1-E , 210.12(C)

5. 133 – Oregon Rule and Law Version 2023

1

The Oregon Electrical Specialty Code allows ________ to purchase and use temporary electrical work permits.

Licensed electrical contractors only
General contractors for construction temporaries
Any supervisor electrician
Any technician

Reference : 918-309-0080(1)

6. 019 – Oregon Rule and Law Version 2023

1

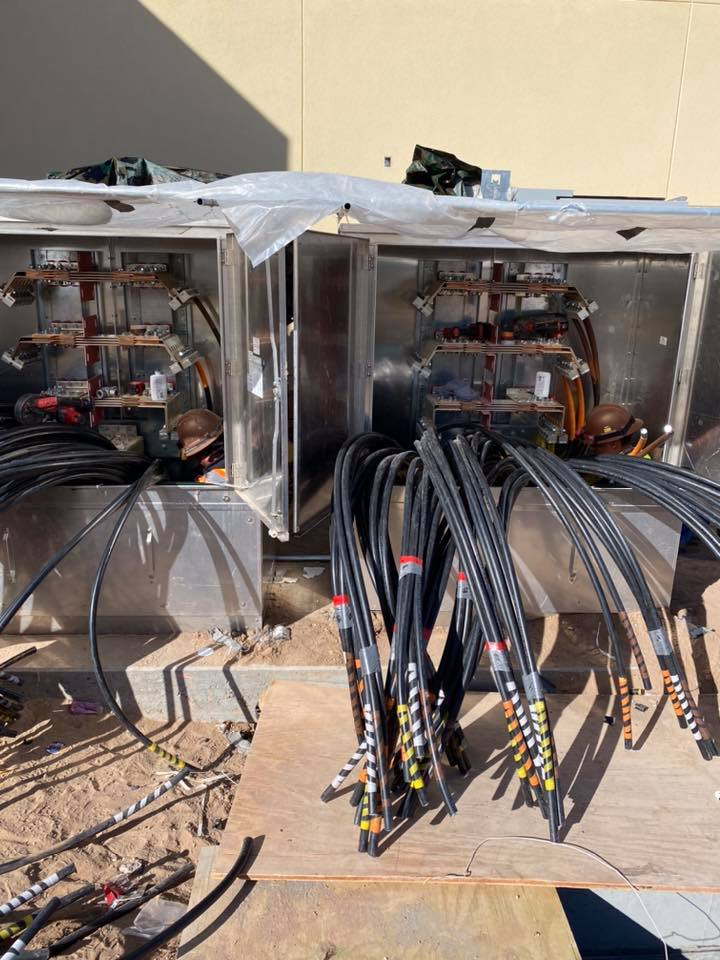

A general journey-level electrical 8,000 hour apprenticeship program in Oregon with at least ________ hours of on-the-job training may work under indirect supervision.

6500
6000
5000
7000

Reference : 918-282-0270

7. 033 – Oregon Rule and Law Version 2023

1

In a dwelling unit, AFCI protection shall not be required for 120 volt, single phase, 15 and 20 ampere branch circuits supplying receptacles located in

Locations with dedicated outlets that supply equipment known to cause unwanted tripping
All of these statements are true
Sunrooms with GFCI protection
Living rooms with dedicated circuits

Reference : Table 1-E , 210.12(B) ex 3

8. 094 – Oregon Rule and Law Version 2023

1

The 2023 NEC required that a low voltage residential lighting switch not exclusively rely on batteries unless the lights would automatically energize if the batteries failed. The State of Oregon Rules ________.

Do not require this change
Clarify that this is only a recommendation
Additionally requires posting labels at the panelboard
Does not now allow these low voltage switches

Reference : Table 1-E 210.70

9. 064 – Oregon Rule and Law Version 2023

1

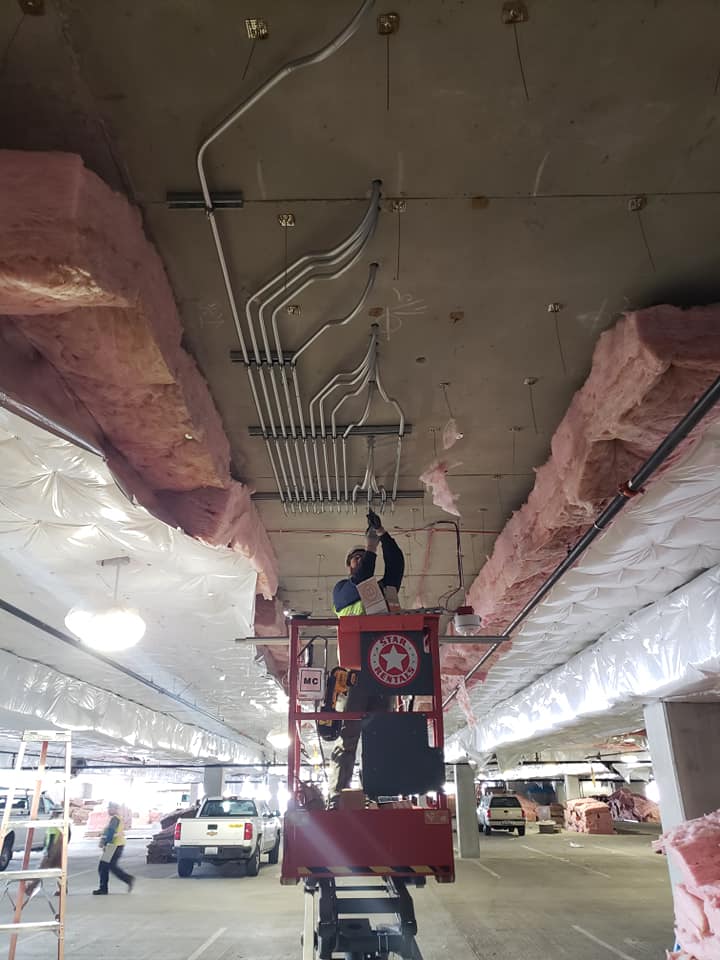

When an electrical contractor has a person that is Continuously Employed, he or she devotes ________ of employment to the tasks such as supervising.

Their entire time
0.5
0.25
0.75

Reference : 918-251-0090

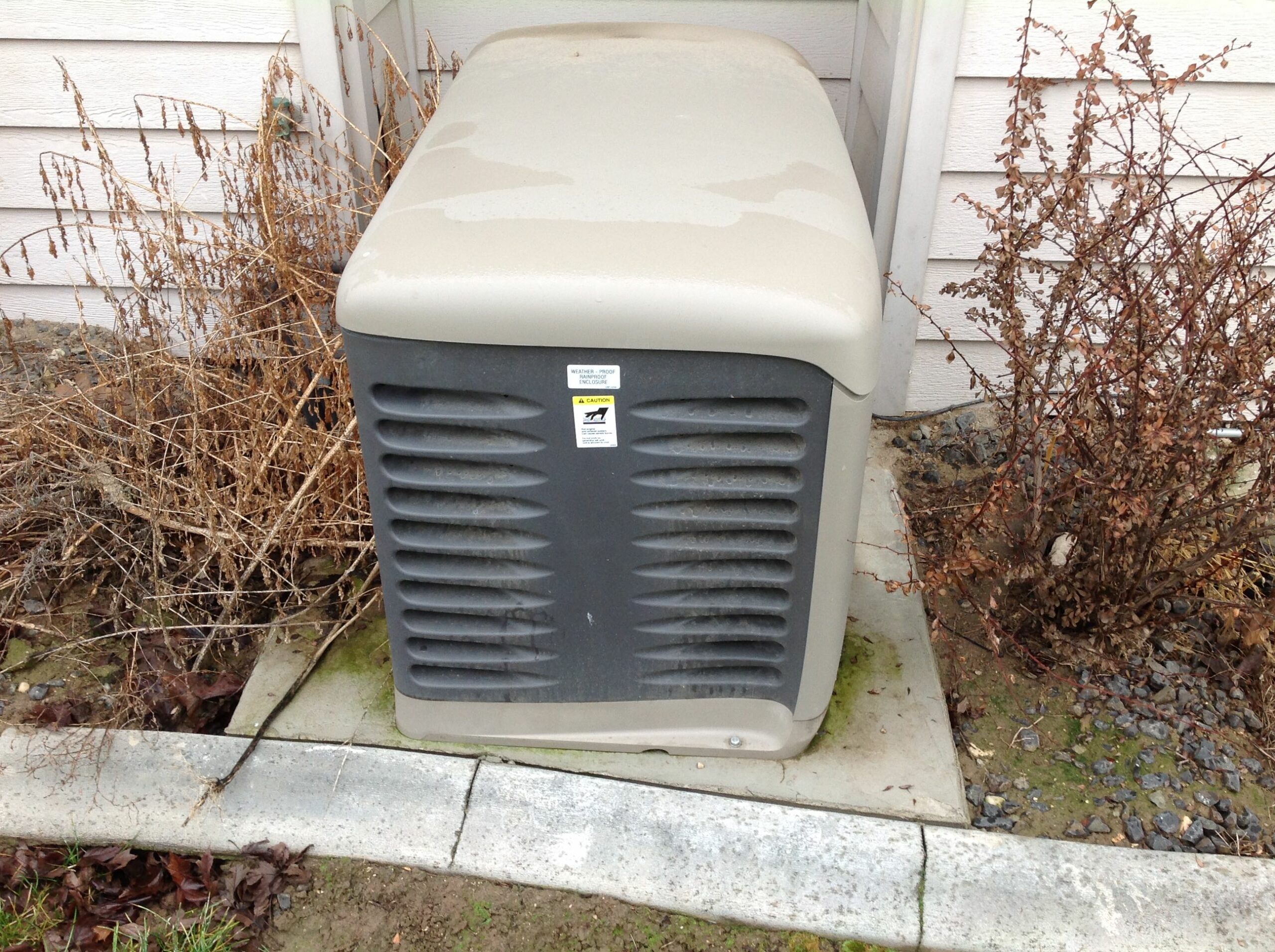

10. 049 – Oregon Rule and Law Version 2023

1

Need to be specifically approved by a supervisor

Now all of these are required in Oregon
Shall meet the requirements of 445.19(A)(1)
Shall be located outside
Shall be accessible

Reference : Table 1-E , 445.19(C)

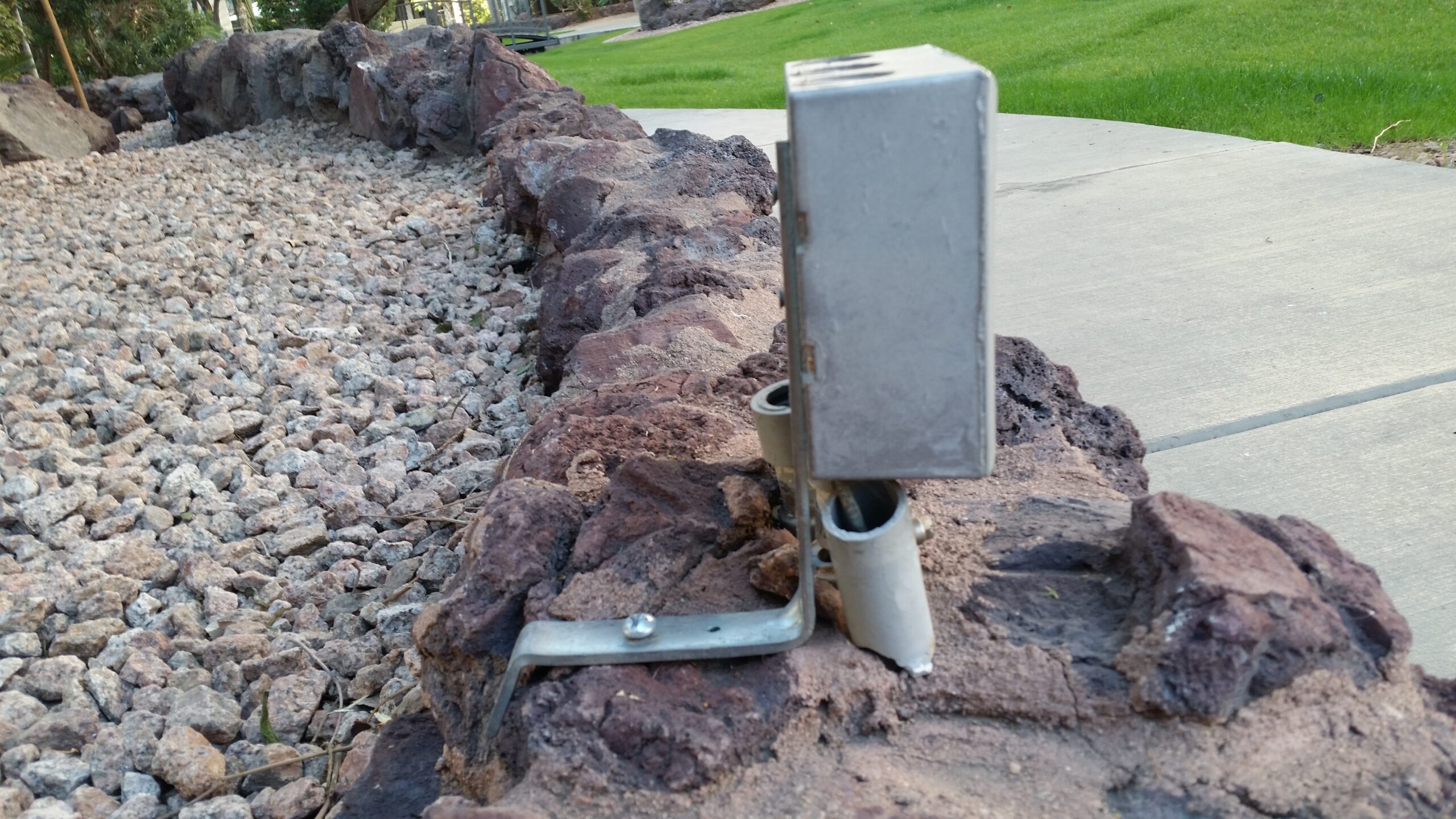

11. 072 – Oregon Rule and Law Version 2023

1

A Limited Energy System can mean a system that includes ________.

All of these statements are true.
An audio system
A power limited fire alarm
A communication system

Reference : 918-251-0090

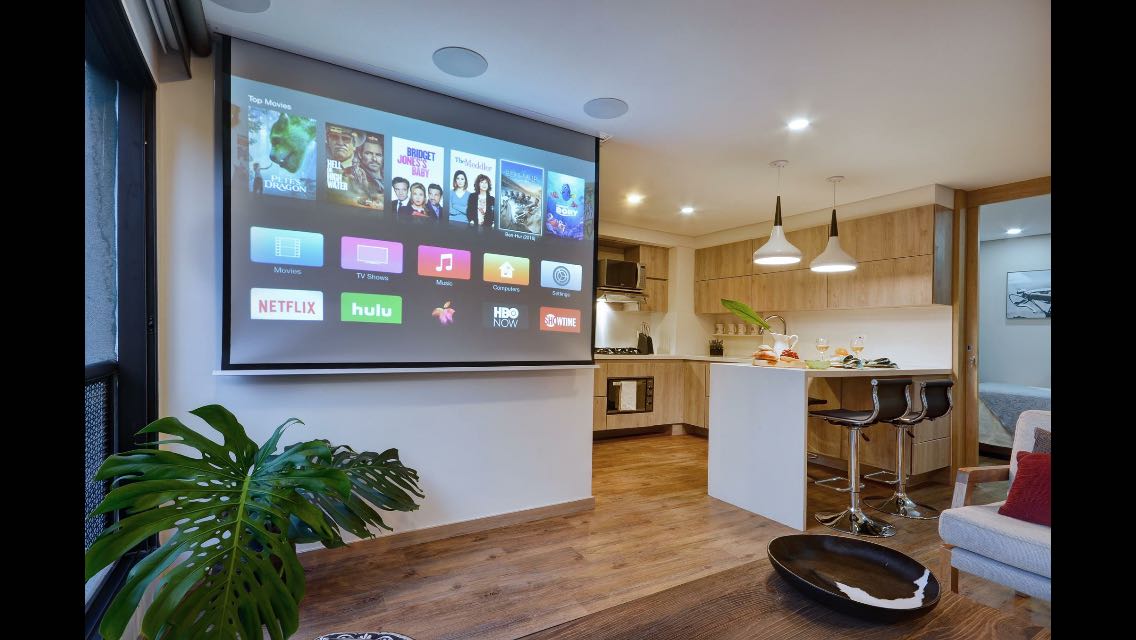

12. 083 – Oregon Rule and Law Version 2023

1

A change in the definition of servicing in the Oregon rules now includes the ________ of used equipment with listed or recognized components. (Also can be a factor when it comes to licensing compliance.)

All of these items are now included
Repair
Testing
Inspection

Reference : Table 1-E 100 Definitions

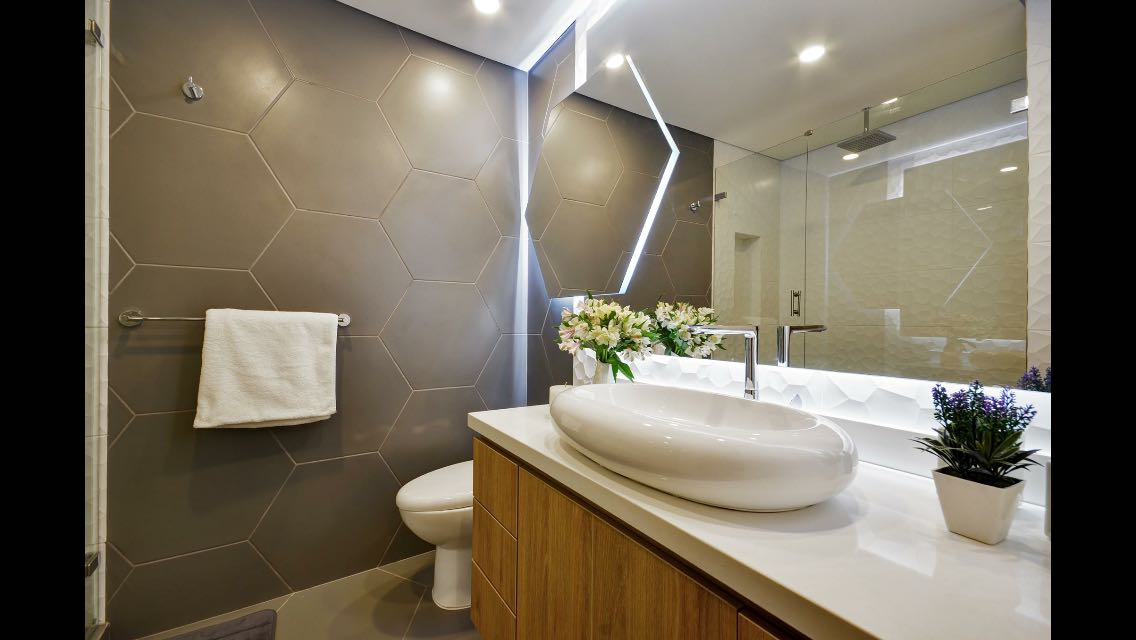

13. 103 – Oregon Rule and Law Version 2023

1

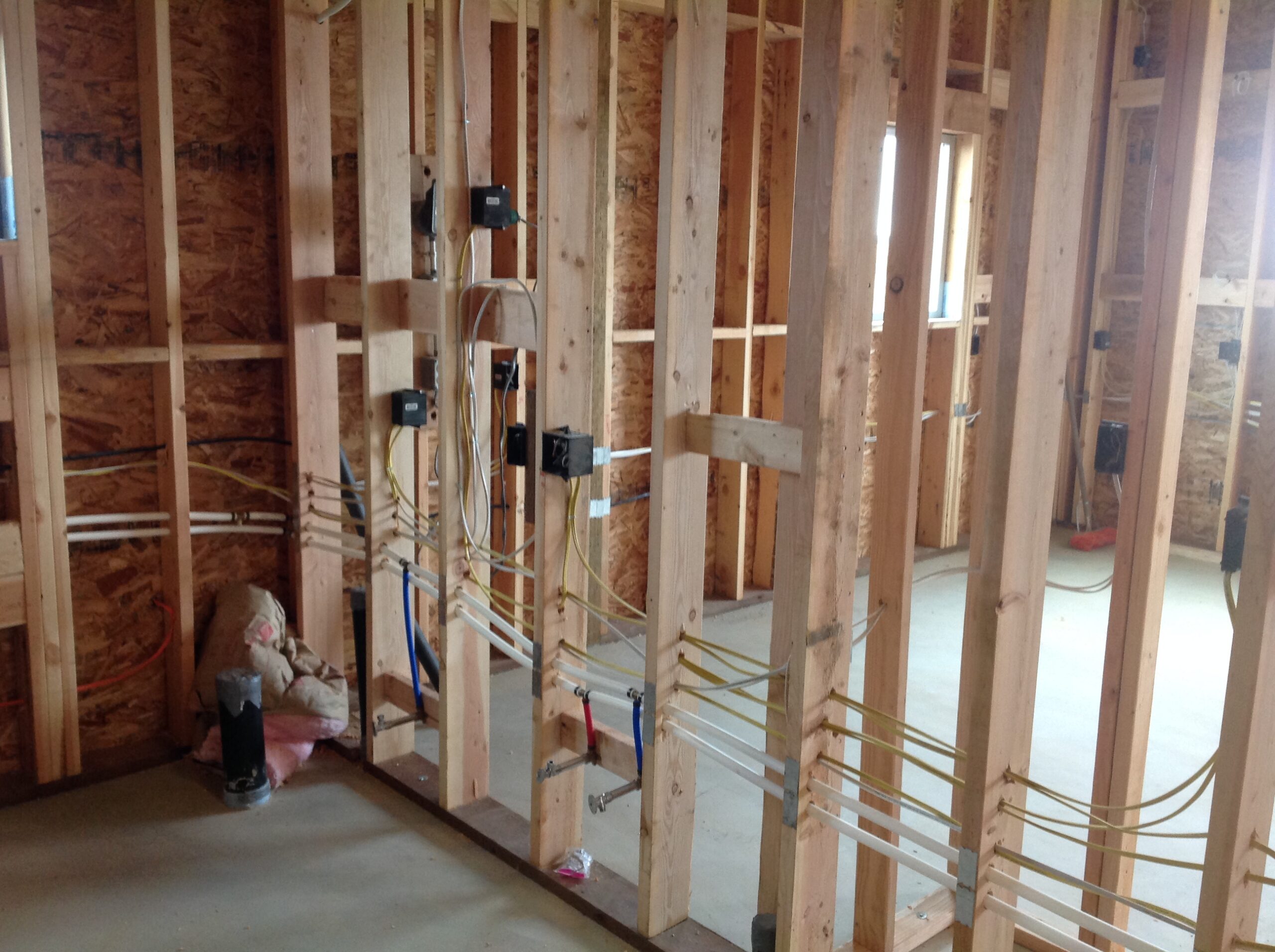

A new general 2023 rules does not allow receptacle outlets within 3 feet of a dwelling unit bathtub or shower. A modified exception for a small bathroom in Oregon allows the receptacle to be installed ________.

Outside the room
To be eliminated
On the farthest wall within the room
Next to the toilet

Reference : Table 1-E 406.9(C)

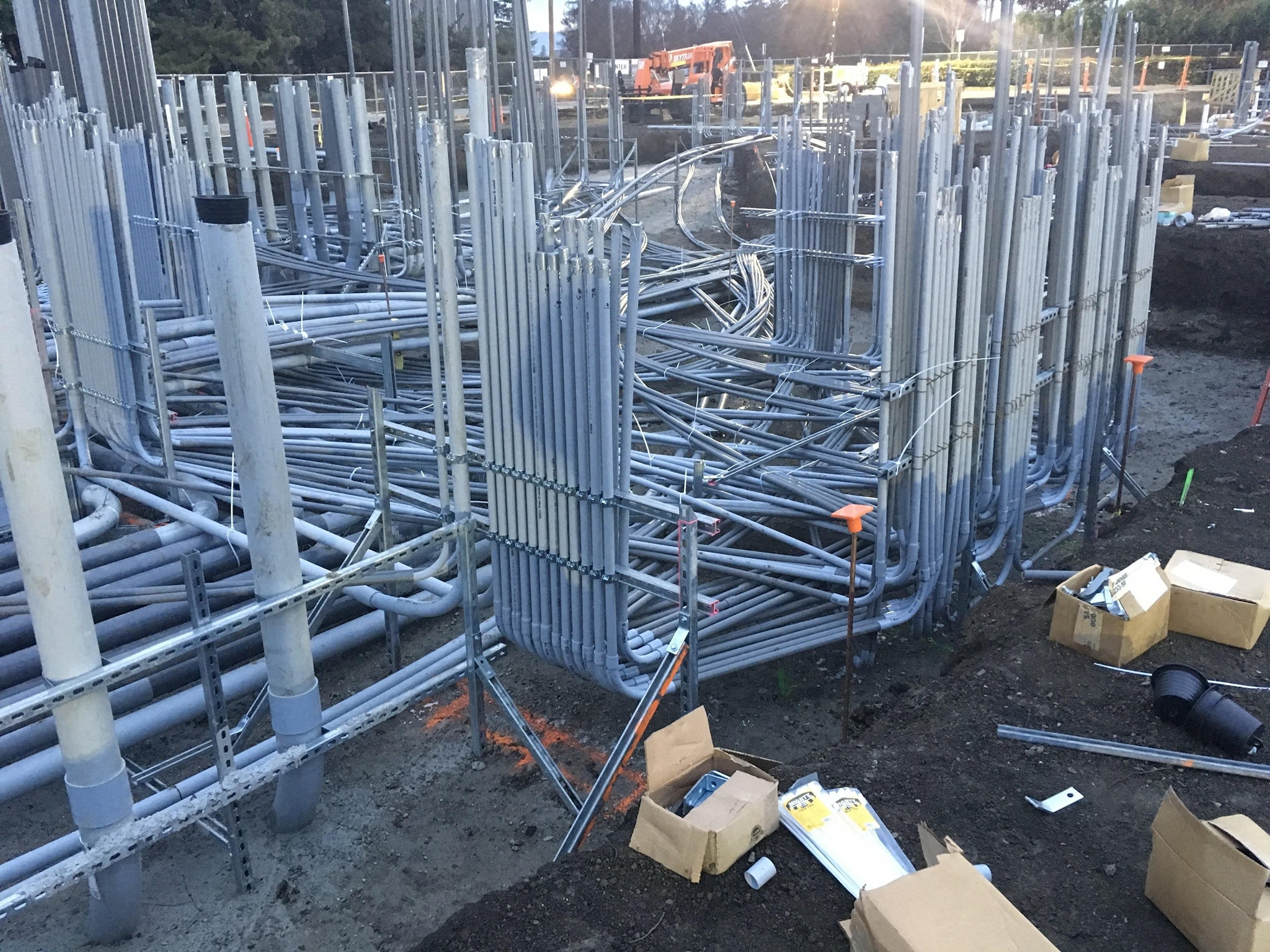

14. 101 – Oregon Rule and Law Version 2023

1

The Oregon State Electrical Specialty Code amendments now allow Electrical Nonmetallic Tubing in buildings exceeding three floors above grad ________.

If installed in accordance with Standard NFPA13
In commercial applications only
When identified at the source panelboard

Reference : Table 1-E 362.10

15. 147 – Oregon Rule and Law Version 2023

1

When an electrical contractor using a master permit for a facility ceases to cover that location, the inspecting jurisdiction shall be notified by the permit holder within ________ of the termination.

10 days
5 days
14 days
30 days

Reference : 918-309-0100(6)

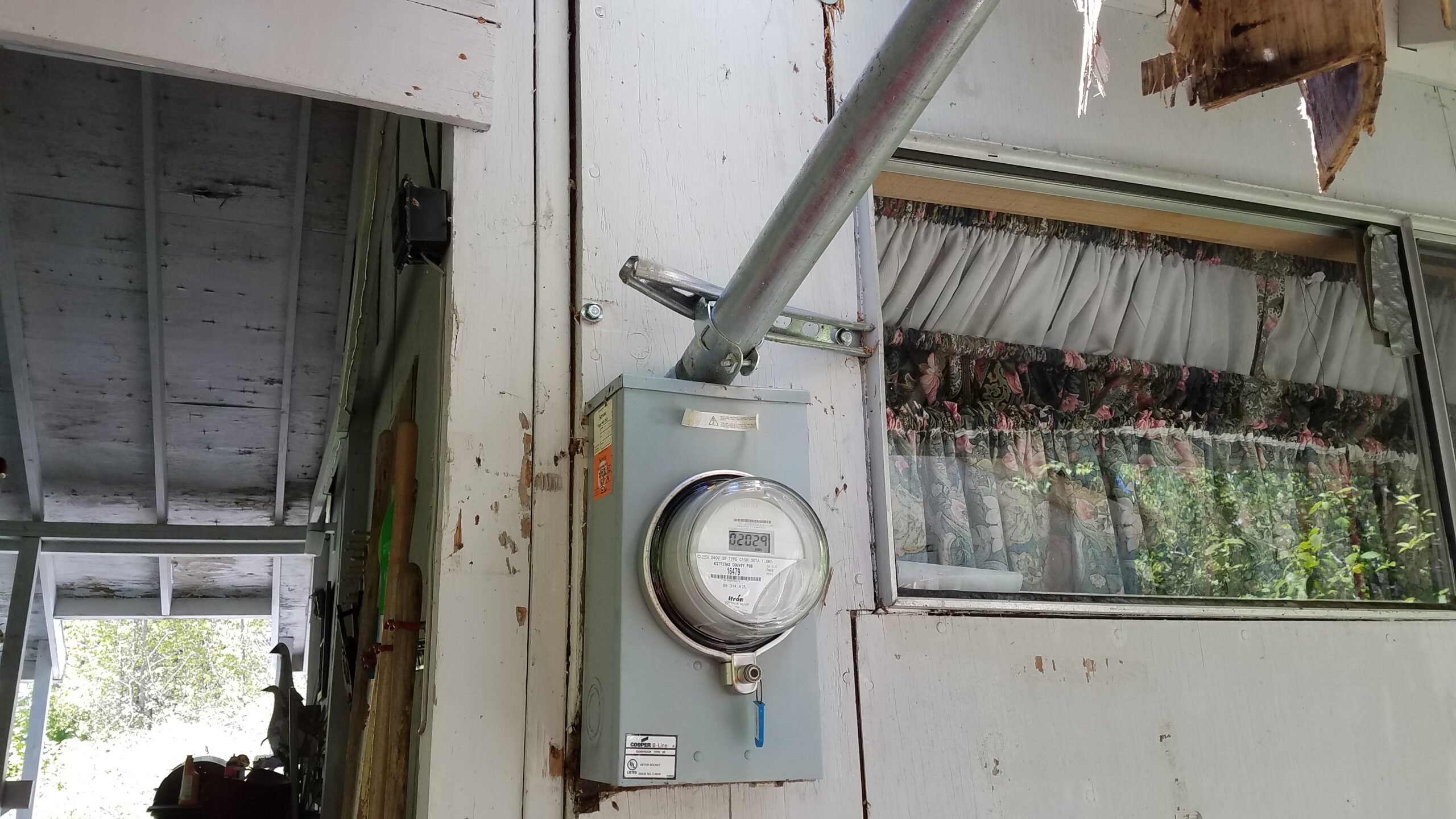

16. 082 – Oregon Rule and Law Version 2023

1

A new clarification of the NEC definition of a structure in Oregon now includes ________.
(Important when it comes to floating a neutral or not.)

A post with an attached meter base
An electric pump station
A branch circuit to a furnace
Any light standard

Reference : Table 1-E 100 Definitions

17. 150 – Oregon Rule and Law Version 2023

1

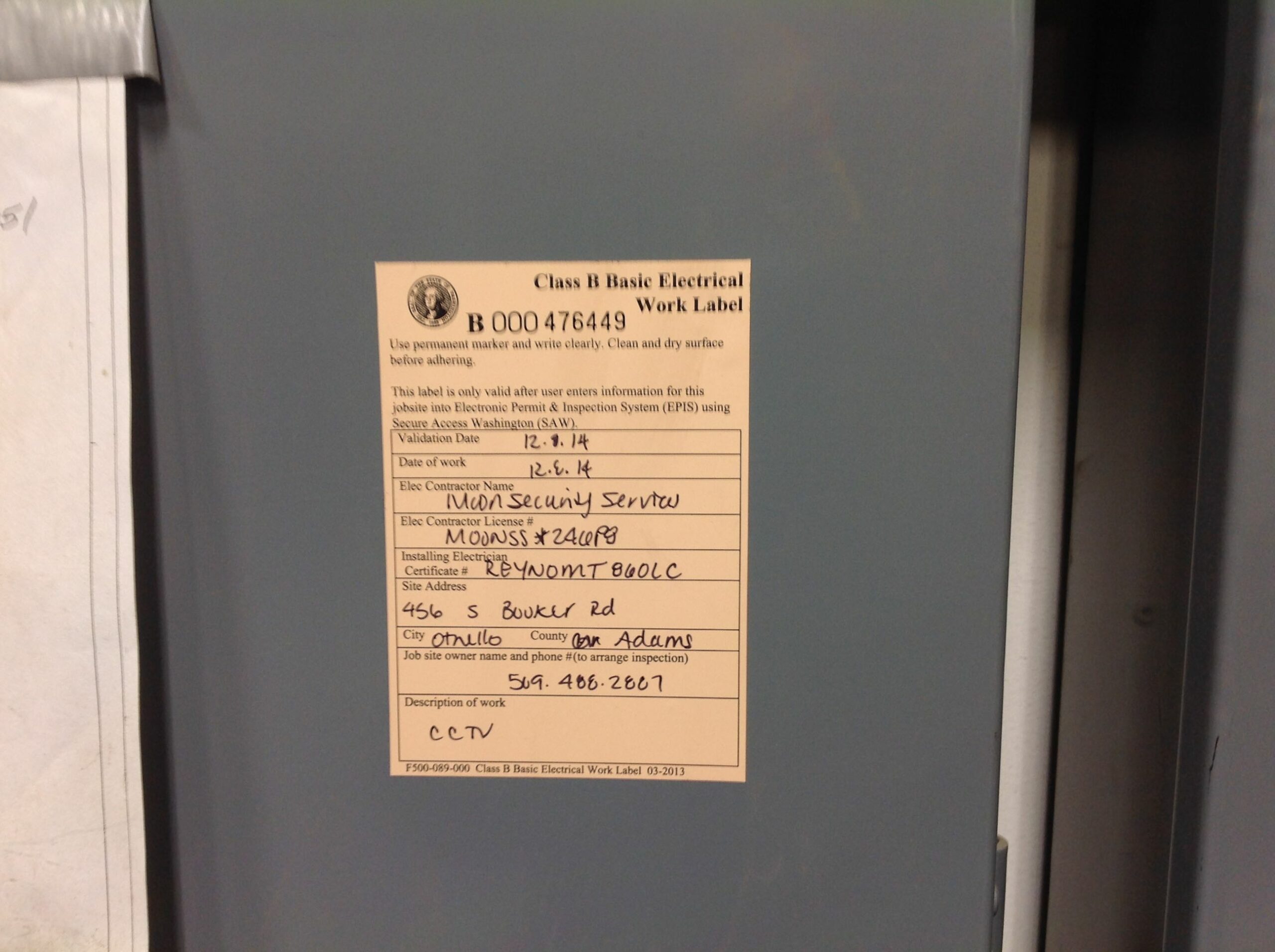

A minor electrical permit label may not be used for an installation ________.

All of the statements are correct
For a swimming pool
That requires a plan review
That requires a sheet rock cover inspection

Reference : 918-309-0220(3)

18. 008 – Oregon Rule and Law Version 2023

1

When a general supervising electrician is working for an electrical contractor, he/she may design, plan, and lay out work for ________.

The customers of the contractor he/she is working for
Any installation within his/her electrical scope
Any installation if he/she is an engineer
Only for altered electrical services

Reference : 918-282-0140

19. 151 – Oregon Rule and Law Version 2023

1

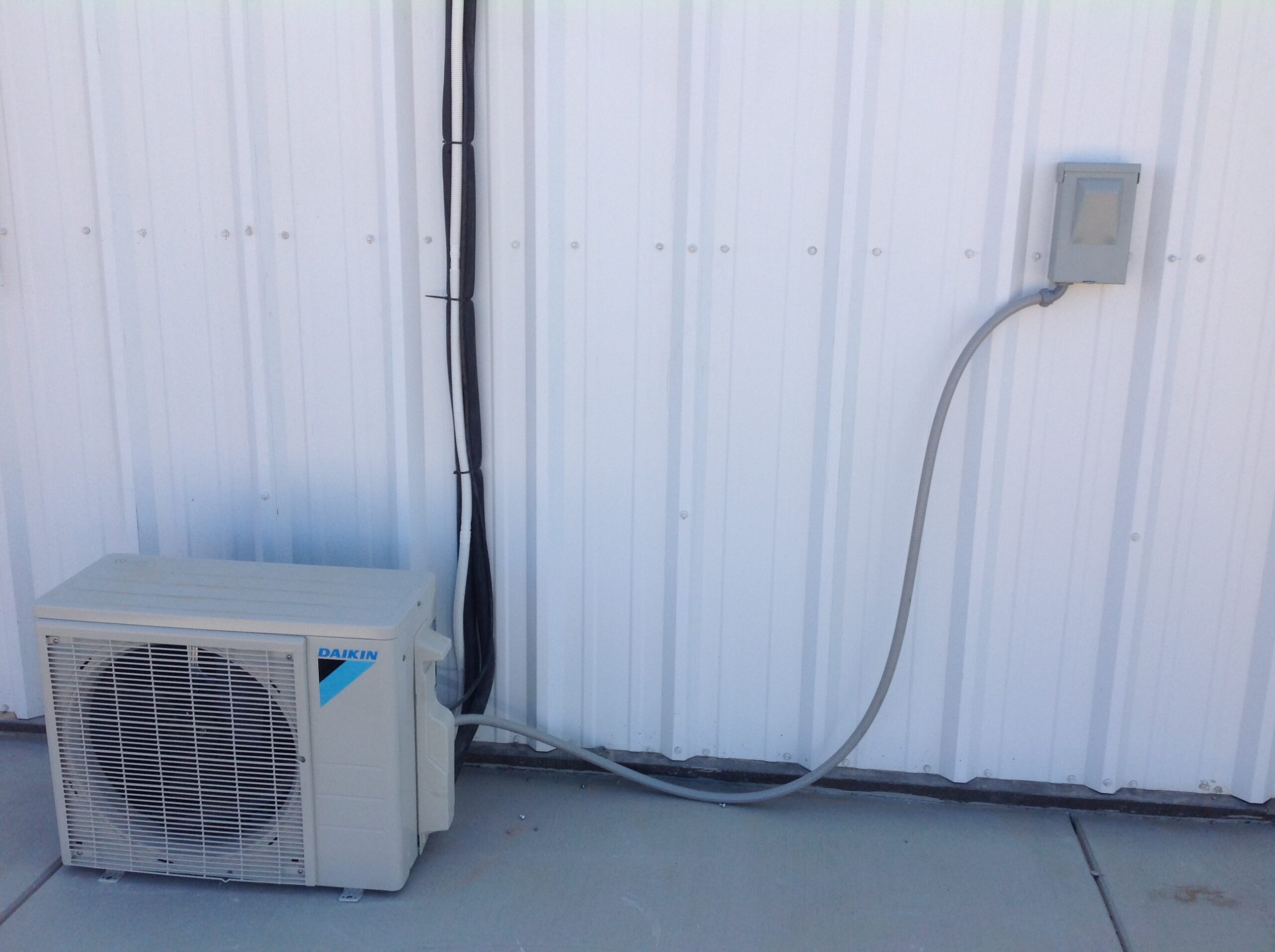

A limited maintenance specialty HVAC/R contractor may use a minor electrical permit label if the single phase installation does not exceed ________.

150 volts to ground
208 volts to ground
240 volts to ground
250 volts to ground

Reference : 918-309-0220(5)

20. 118 – Oregon Rule and Law Version 2023

1

When corrections have been issued to a permitted electrical installation, those corrections must be completed within ________ of the notification.

20 days
15 days
30 days
60 days with extensions

Reference : 918-309-000(8)

21. 037 – Oregon Rule and Law Version 2023

1

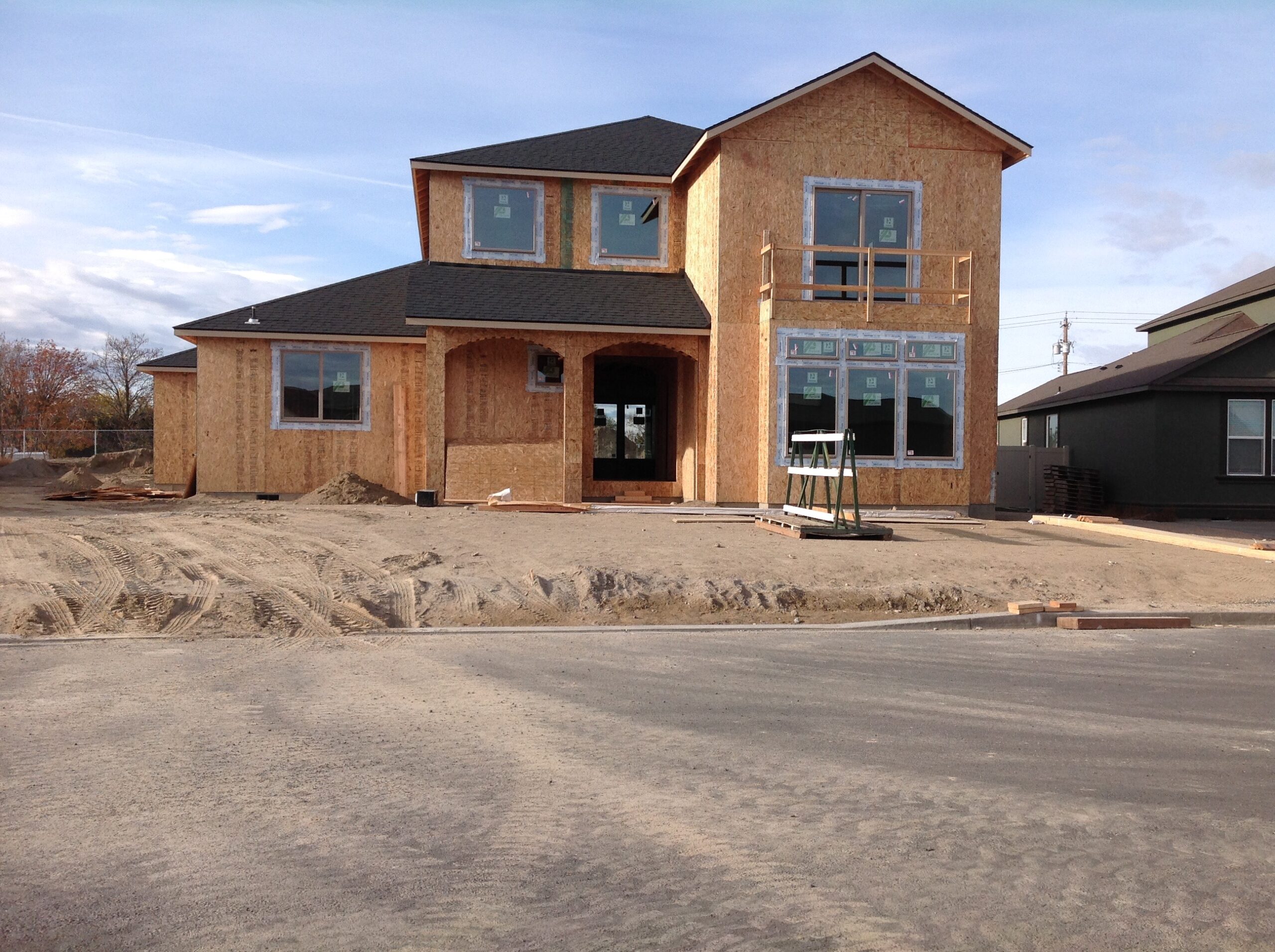

A deck or porch that is located above grade is required to have at least 1 receptacle outlet installed, unless

It has a depth of 1 foot or less
It has a depth of 2 feet or less
It has an area of less than 25 square feet
It has an area of less than 30 square feet

Reference : Table 1-E , 210.52(E)(3)

22. 048 – Oregon Rule and Law Version 2023

1

Stationary generators 600 volts and less

Are not required to be listed
Shall be listed
Shall be identified only
Need to be specifically approved by a supervisor

Reference : Table 1-E , 445.6

23. 128 – Oregon Rule and Law Version 2023

1

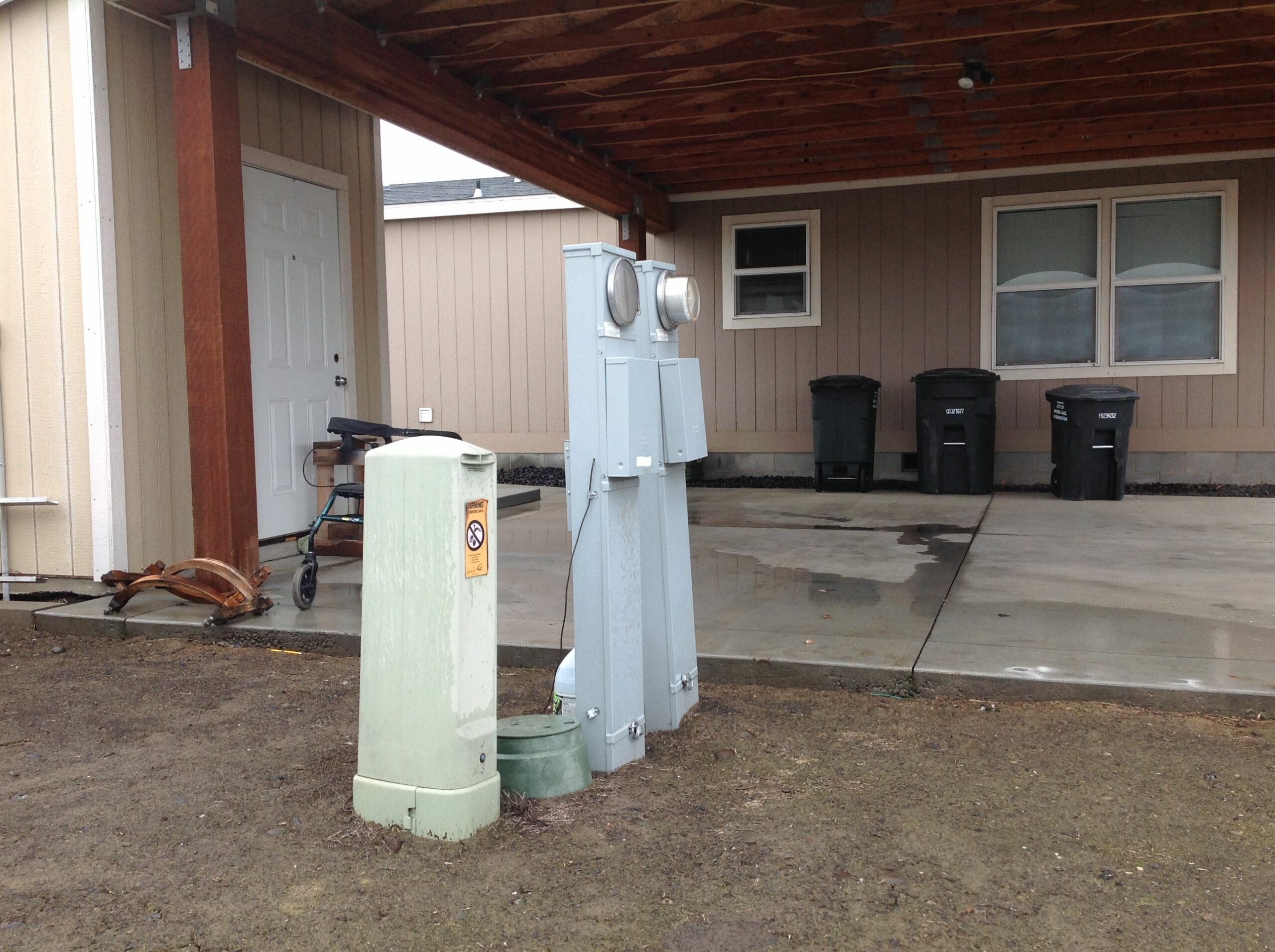

The electrical work permit fee for a manufactured dwelling unit (mobile home) ________.

Is typically based on a service and feeder fee
Is based on square footage
Has a discount available for senior citizens
Has a discount available for multiple units

Reference : 918-309-0030(5)

24. 119 – Oregon Rule and Law Version 2023

1

The Oregon Electrical Specialty Code does not require any type of an electrical work permit for

Replacing fuses
Changing luminaire ballasts
Changing luminaire drivers
Replacing receptacles and switches

Reference : 918-309-000(10)

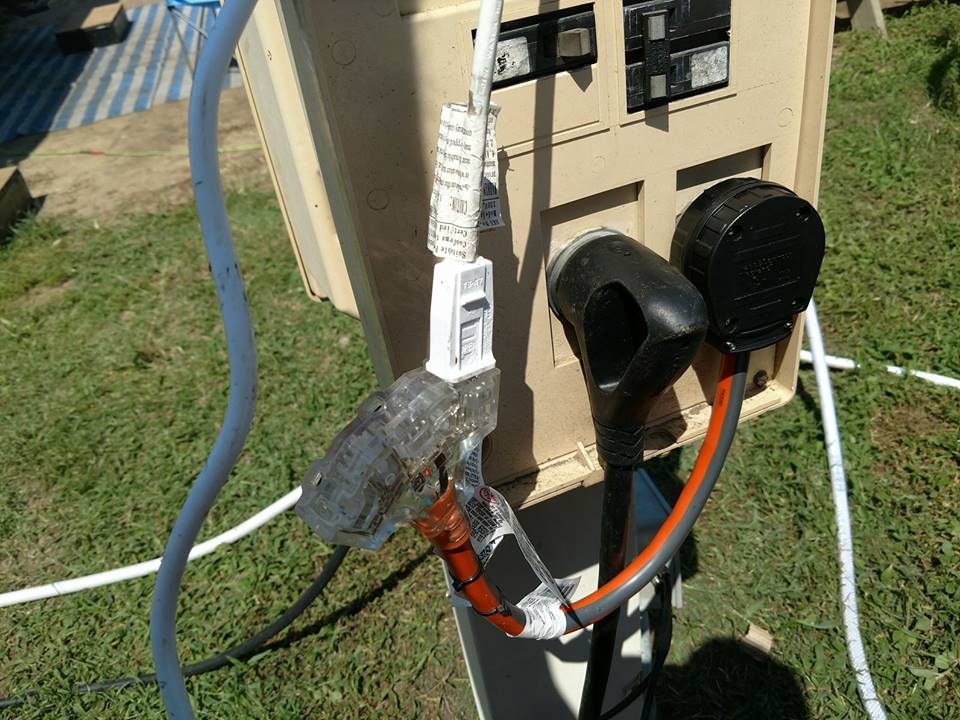

25. 135 – Oregon Rule and Law Version 2023

1

Temporary electrical work permits can be used for ________.

Unanticipated electrical work
Any provisional work in hazardous locations only
And by homeowners
Small installations so that no electrical permit is needed also

Reference : 918-309-0075(2)

26. 127 – Oregon Rule and Law Version 2023

1

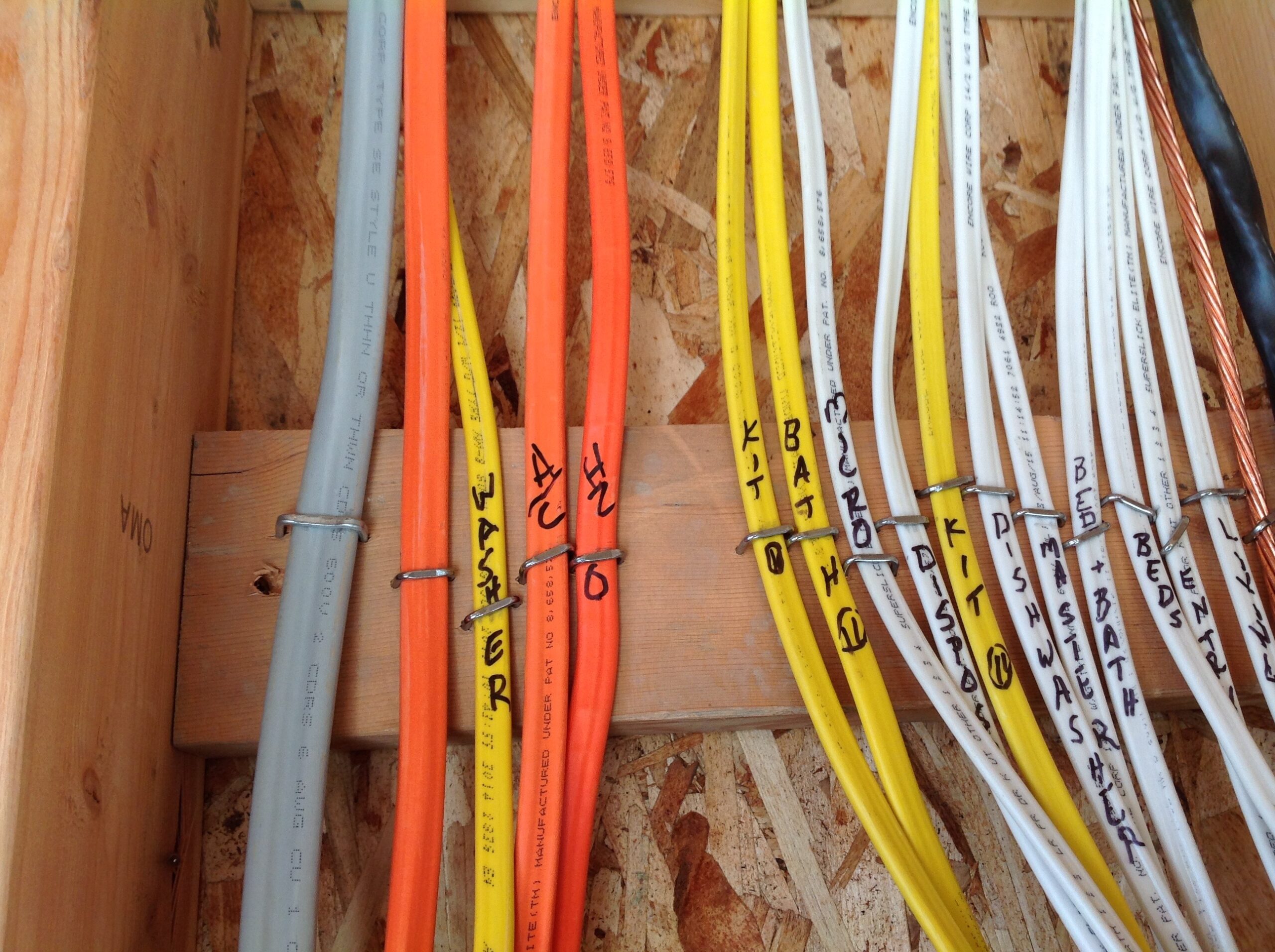

To calculate the fee for an electrical work permit for a one-family dwelling, ________.

You must include the square footage of the garage if it is attached
The attached garage is not included in this footprint
A discount is available for senior citizens
The Specialty Code does not clarify fees regarding garages

Reference : 918-309-0030(5)

27. 086 – Oregon Rule and Law Version 2023

1

A new alterative method from the 2023 NEC to recondition and restore electrical equipment in Oregon is to use replacement parts ________.

Selected by the supervising electrician
Designed by any engineer
By the manufacturer only
Selected by the electrical inspector

Reference : Table 1-E 110.20

28. 123 – Oregon Rule and Law Version 2023

1

When an electrical contractor has a job that requires a state plan review process, _________.

A partial permit may be purchased so work can begin
An outside firm can be hired to complete the review
They can only begin with express consent from the chief
They can not begin any work until the process is completed

Reference : 918-309-0025(1)

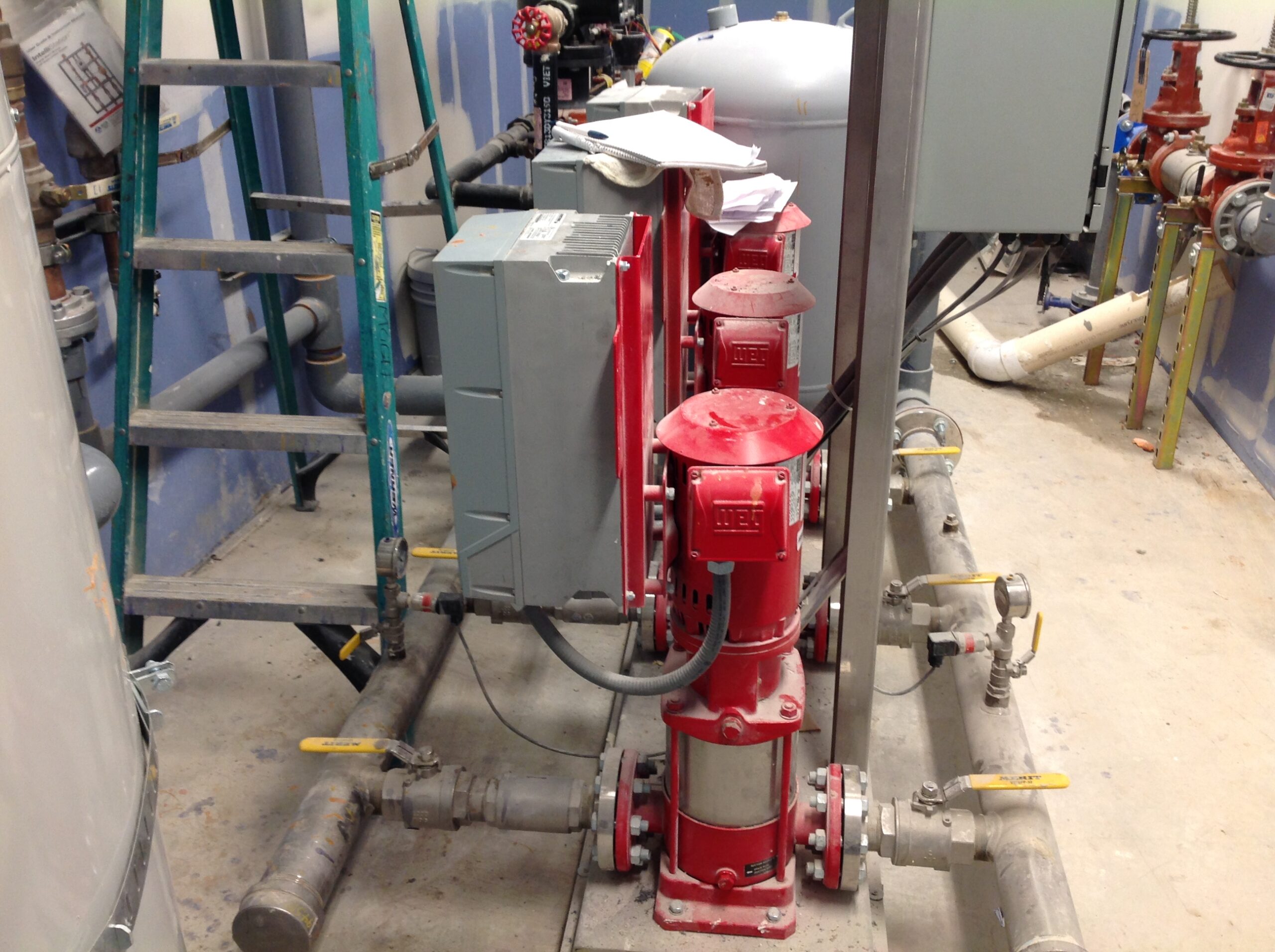

29. 089 – Oregon Rule and Law Version 2023

1

The 2023 NEC added additional GFCI protection requirements for aquariums and bait wells. The Oregon rules modified with an exception if the device is installed ________ and a single receptacle is installed.

Indoors
Outdoors
Above 5 feet
Above 6 feet

Reference : Table 1-E 210.8(B)ex7

30. 034 – Oregon Rule and Law Version 2023

1

In a dwelling unit, AFCI protection shall not be required for 120 volt, single phase, 15 and 20 ampere branch circuits supplying receptacles located in

An area that serves an appliance that is fastened in place
A pet wash location
An area that could be considered a damp location that can cause unwanted tripping
In any wet location

Reference : Table 1-E , 210.12(B)ex 4

31. 129 – Oregon Rule and Law Version 2023

1

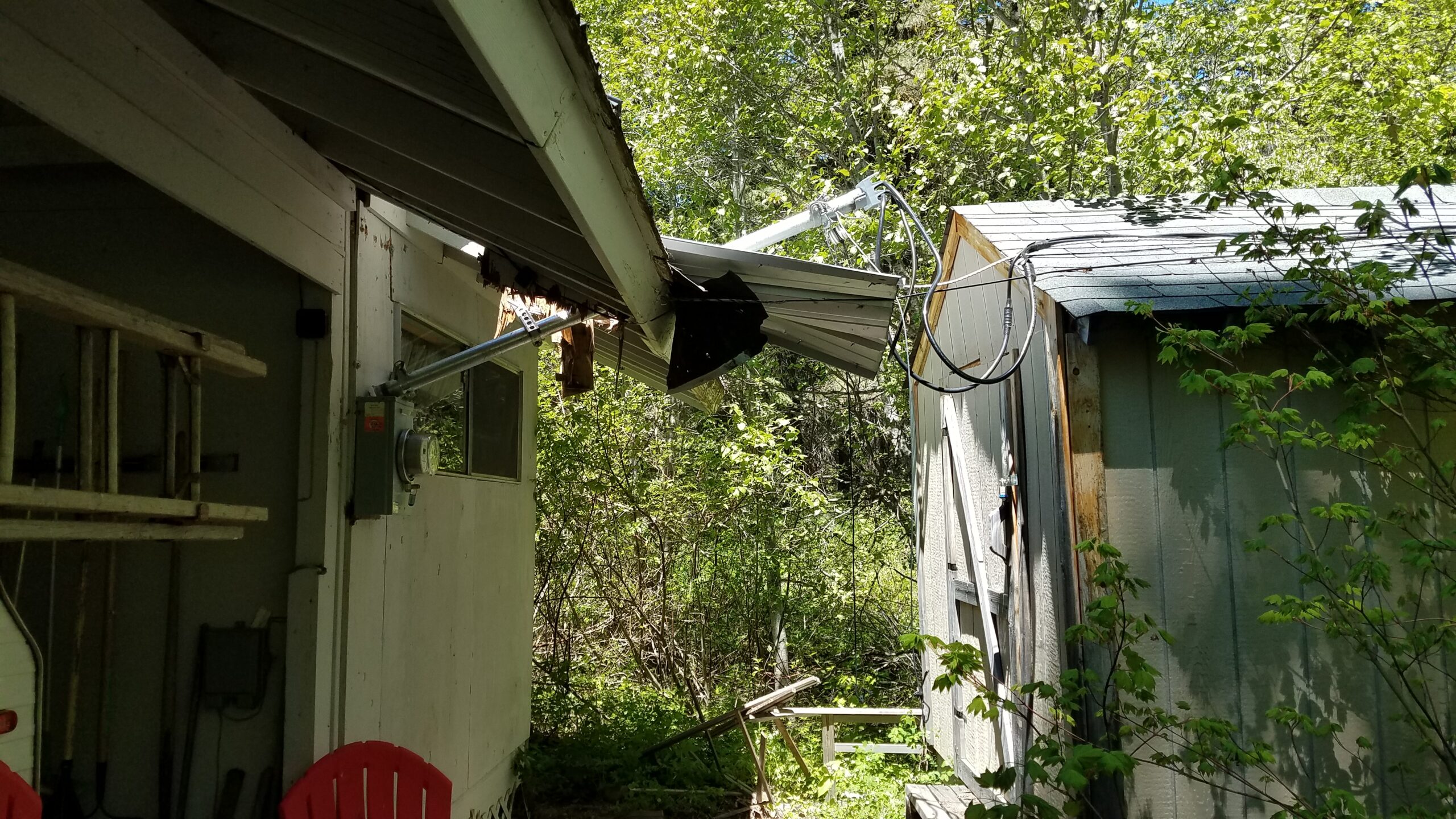

When an electrical service was disconnected for repairs, if a major violation of the service exists, ________.

A new service and permit fee is required
The corrections shall be completed with 30 days
A citation shall be issued to the owner
A citation shall be issued to the electrical contractor

Reference : 918-309-0040(9)

32. 112 – Oregon Rule and Law Version 2023

1

In the State of Oregon, an electrical work permit is required ________.

Prior to the start of the electrical work
Before an inspection request
Within 1 day of the start of the work
Before the plan review process

Reference : 918-309-000(3)

33. 153 – Oregon Rule and Law Version 2023

1

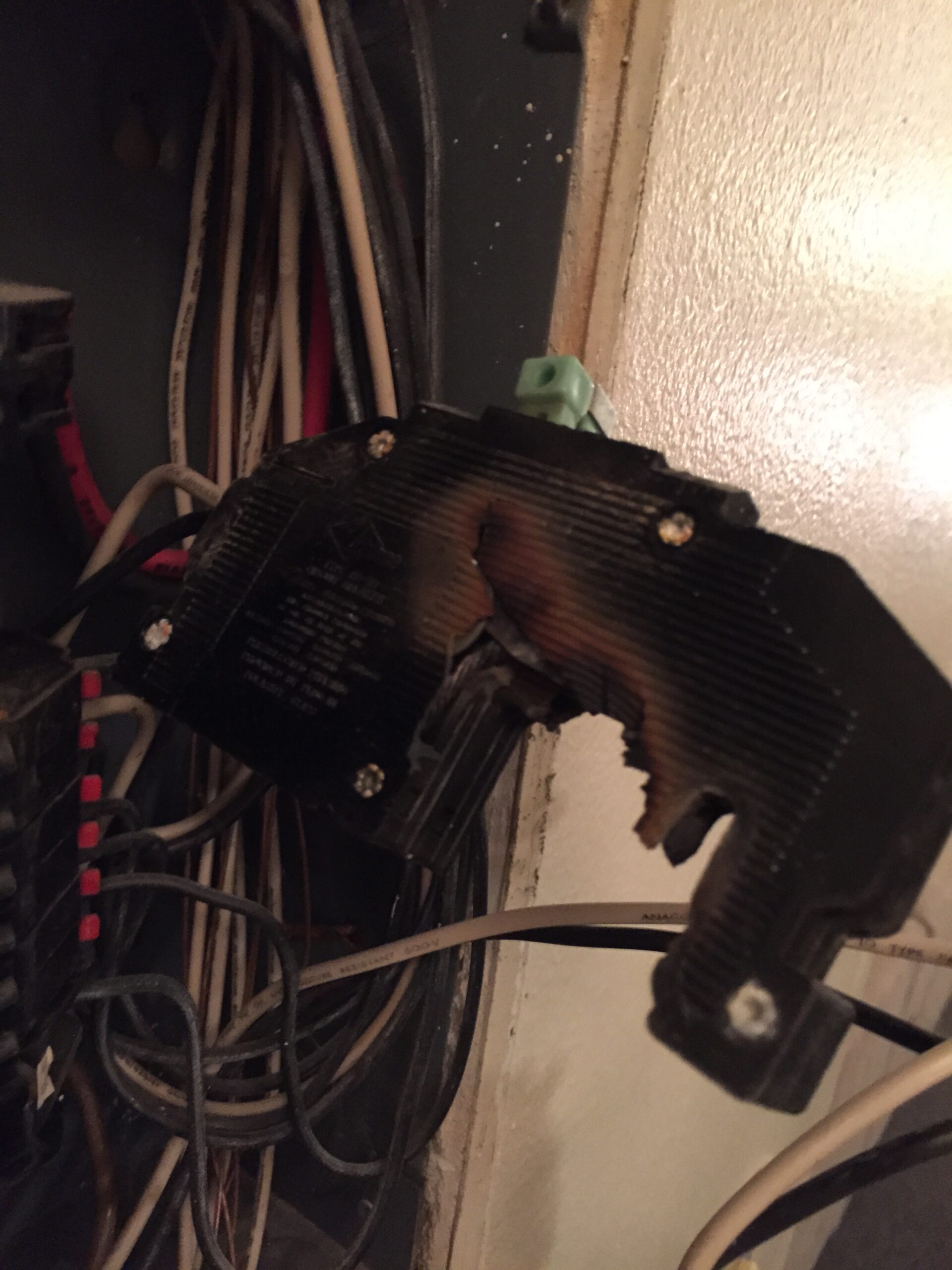

A limited maintenance specialty contractor can take advantage of a minor label electrical permit to replace up to ________ ballasts for light fixtures under one minor permit.

10
15
12
20

Reference : 918-309-0220(5)

34. 154 – Oregon Rule and Law Version 2023

1

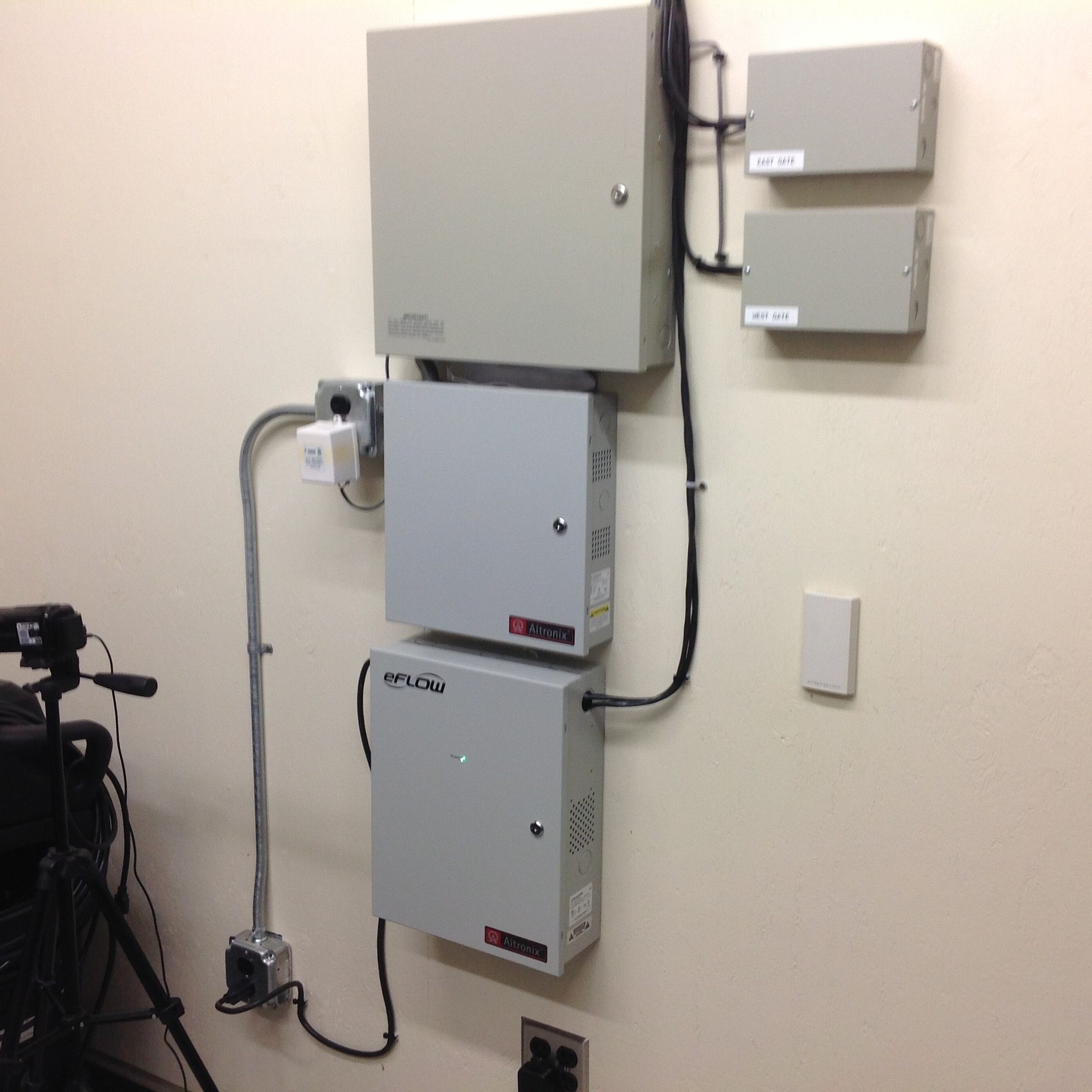

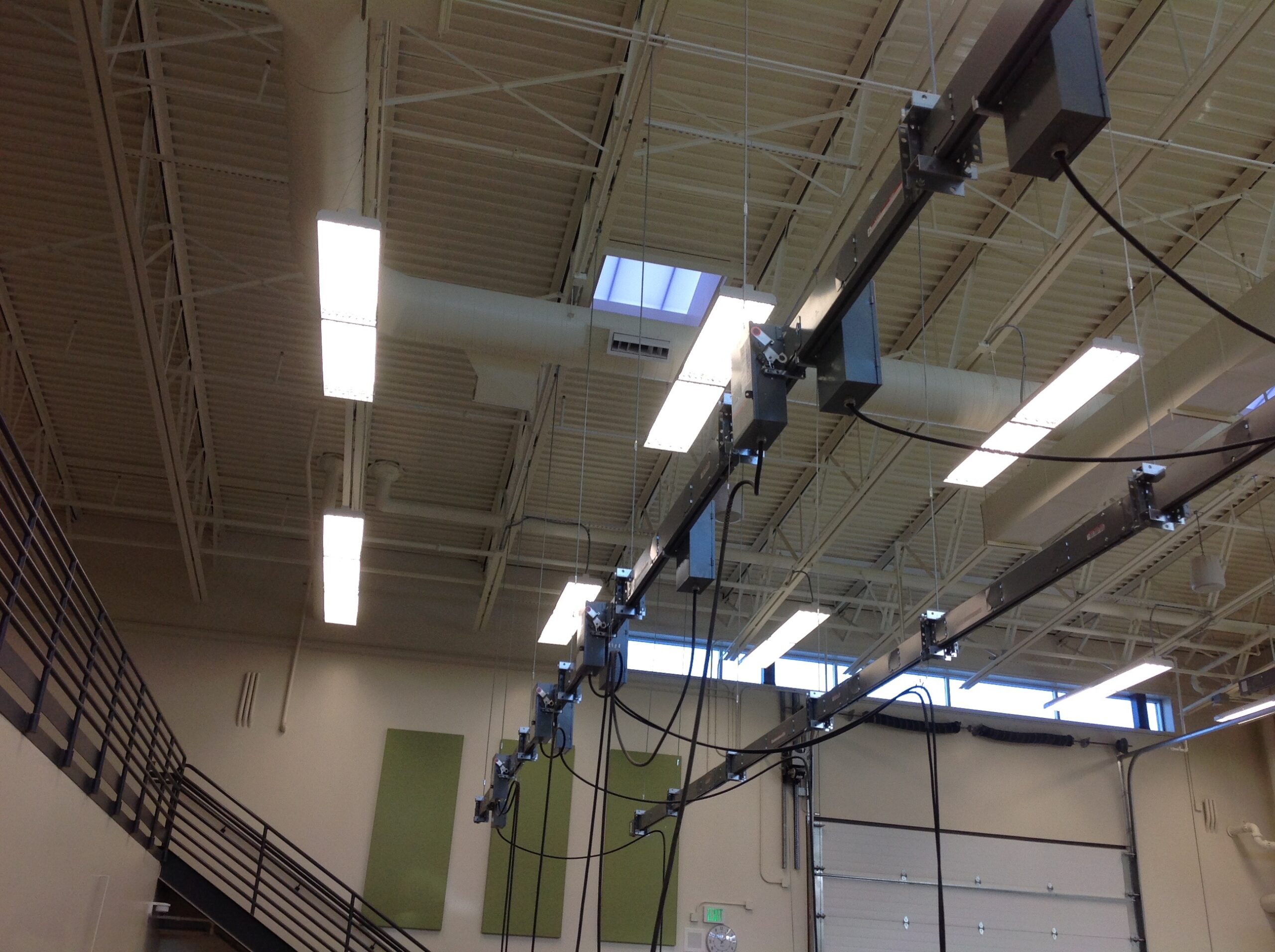

A limited energy contractor can use a limited minor electrical permit for ________.

Audio and stereo systems
Any vacuum system not over 5
Security systems but only under 5
Fire alarms

Reference : 918-309-0220(6)

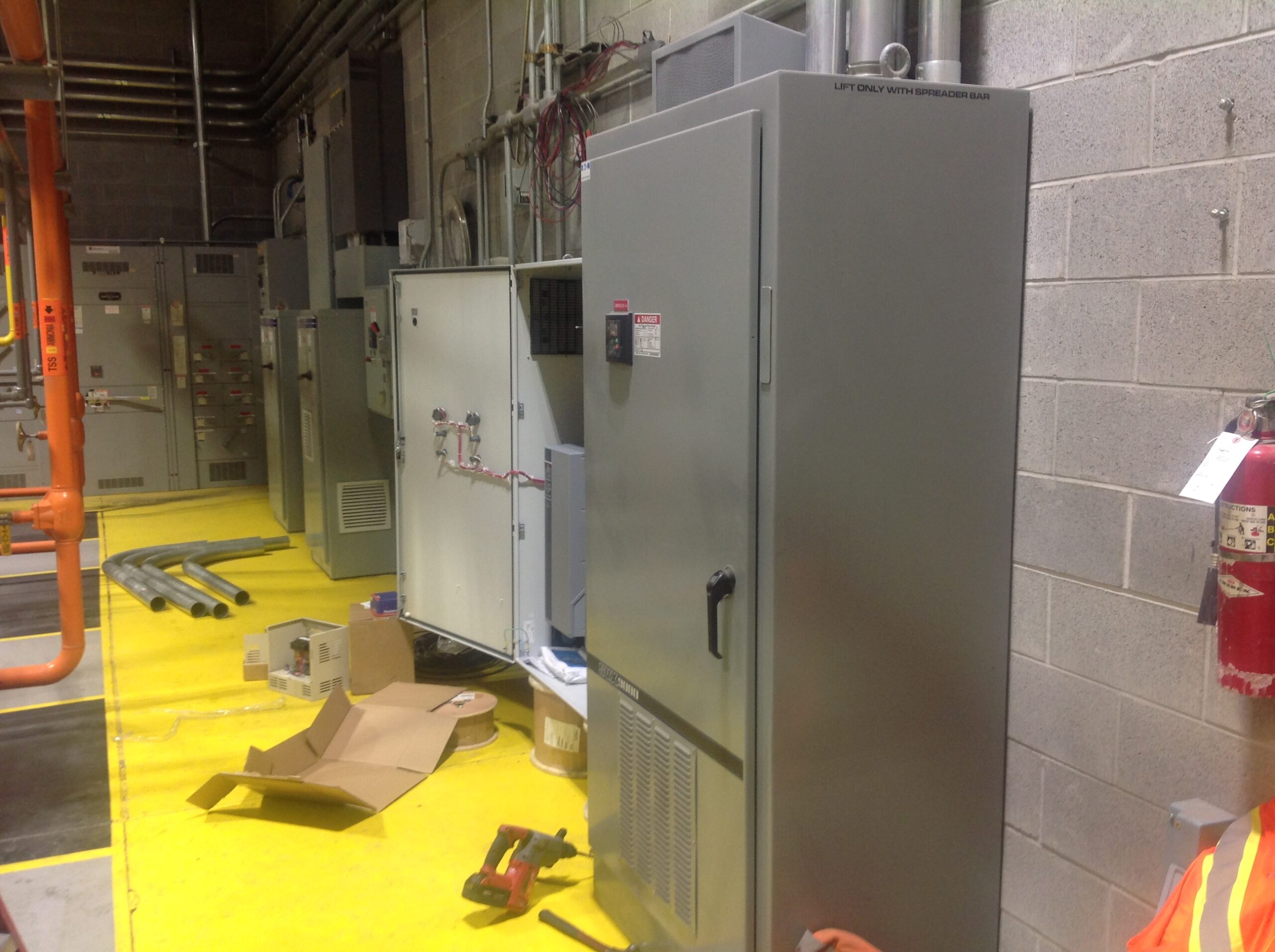

35. 146 – Oregon Rule and Law Version 2023

1

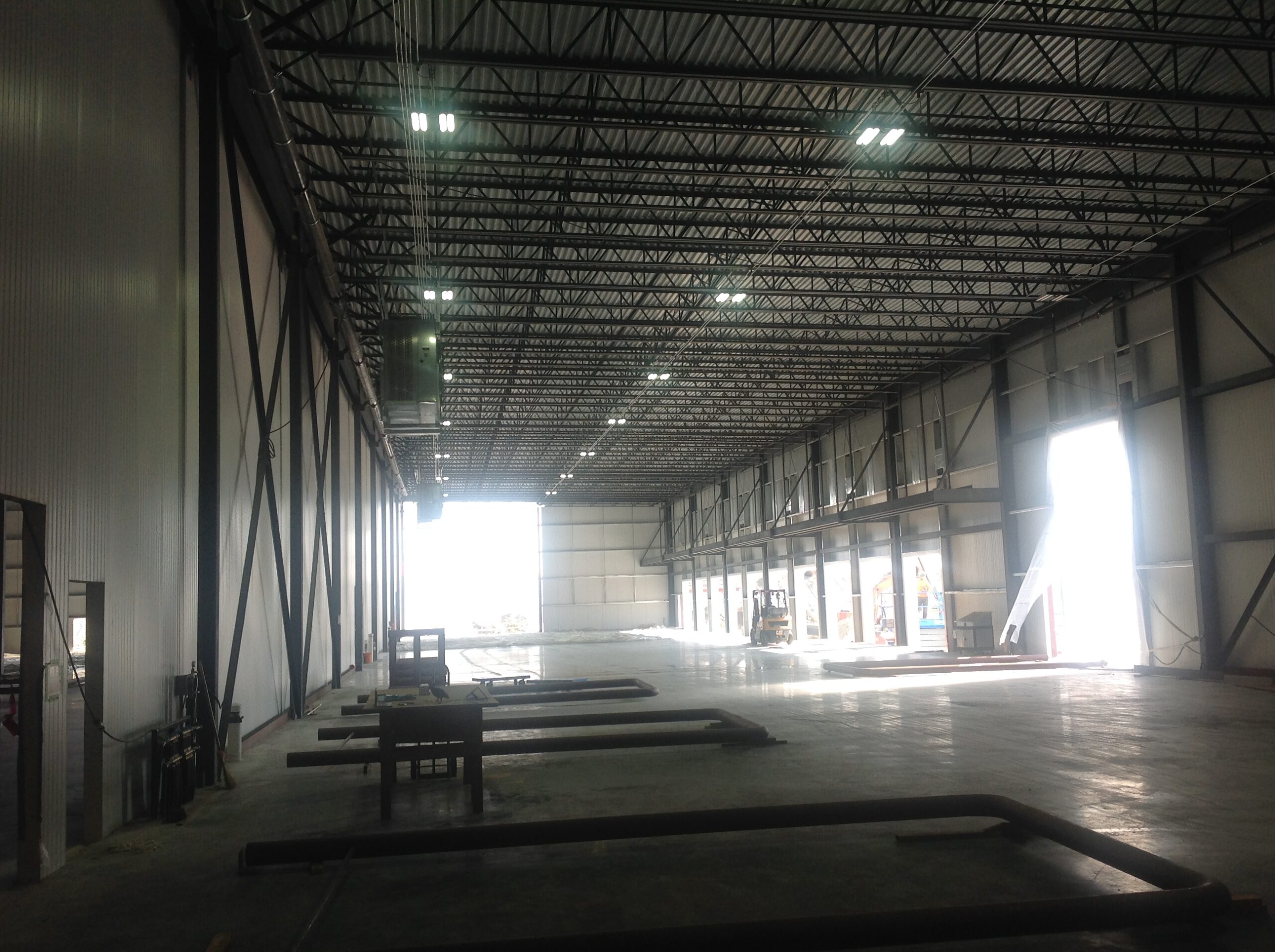

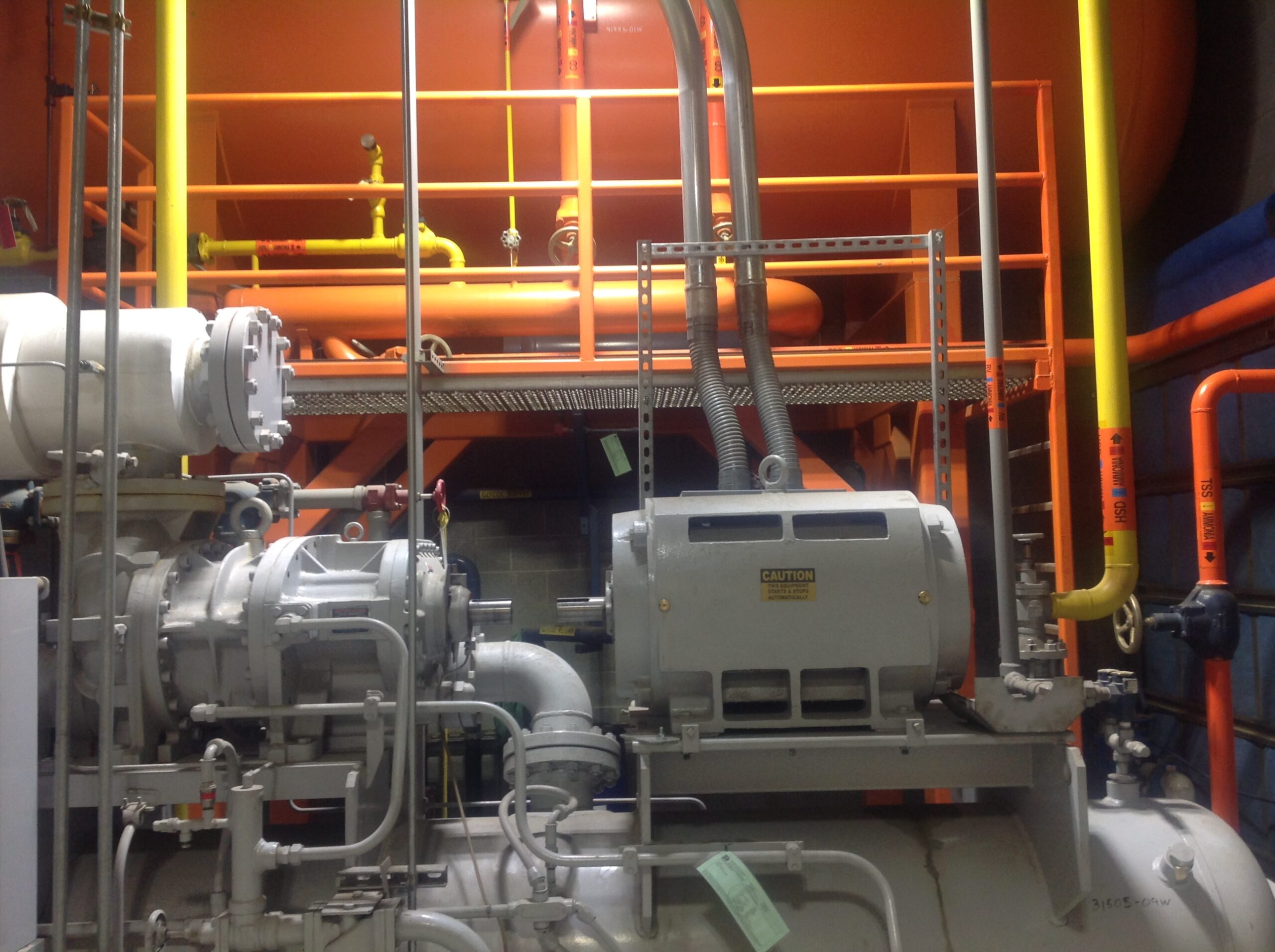

A covered facility can obtain and use a master electrical permit only if ________.

Licensed electricians do the work
The facility has used these permits before
The facility is over 10
They agree to have progress inspections once a month

Reference : 918-309-0100(5)

36. 090 – Oregon Rule and Law Version 2023

1

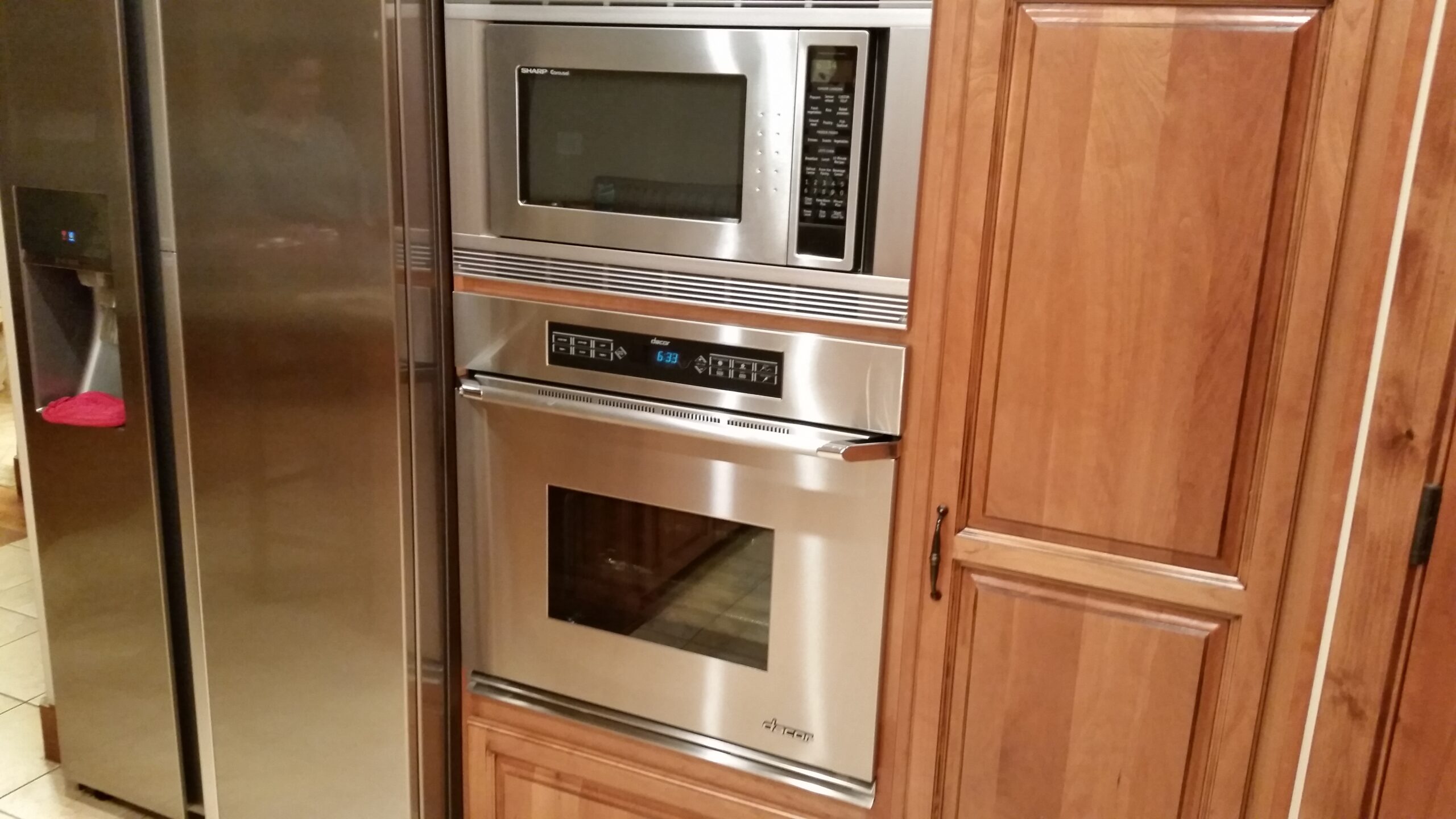

The 2023 NEC expanded the requirements for GFCI protection for appliances, the Oregon Specialty Code clarified GFCI protection for _________.

Specific appliances
3 phase appliances only
Single phase appliances only
No appliances

Reference : Table 1-E210.8(D)

37. 004 – Oregon Rule and Law Version 2023

1

A registered signing supervising electrician shall provide direct supervision or control on a job by ________.

All of these statements are true.
Being on the job site
Having a continuously employed full time supervising electrician on the job site
Be available in person to meet with the inspector on the job site within 2 business days

Reference : 918-282-0015

38. 140 – Oregon Rule and Law Version 2023

1

When notification to a jurisdiction of the use of a temporary electrical permit is called in, the original with payment must also be mailed in within ________.

7 days
6 days
5 days
4 days

Reference : 918-309-0080(4)

39. 012 – Oregon Rule and Law Version 2023

1

A licensed general journey-level electrician is authorized to do ________.

Any electrical installation
Residential electrical installations only
General electrical installations only
Commercial electrical installations only

Reference : 918-282-0170

40. 100 – Oregon Rule and Law Version 2023

1

The Oregon State Electrical Specialty amendments allow overcurrent protective devices in ________.

Locker rooms
Hotel guest room bathroom
Dormitory unit bathrooms
Dwelling unit bathrooms

Reference : Table 1-E 240.24(E)

41. 005 – Oregon Rule and Law Version 2023

1

Electrical licenses in Oregon are not required to do testing of electrical products in _________.

All of these statements are true.
A recognized UL testing lab
Industrial plants
An electrical shop

Reference : 918-282-0110

42. 108 – Oregon Rule and Law Version 2023

1

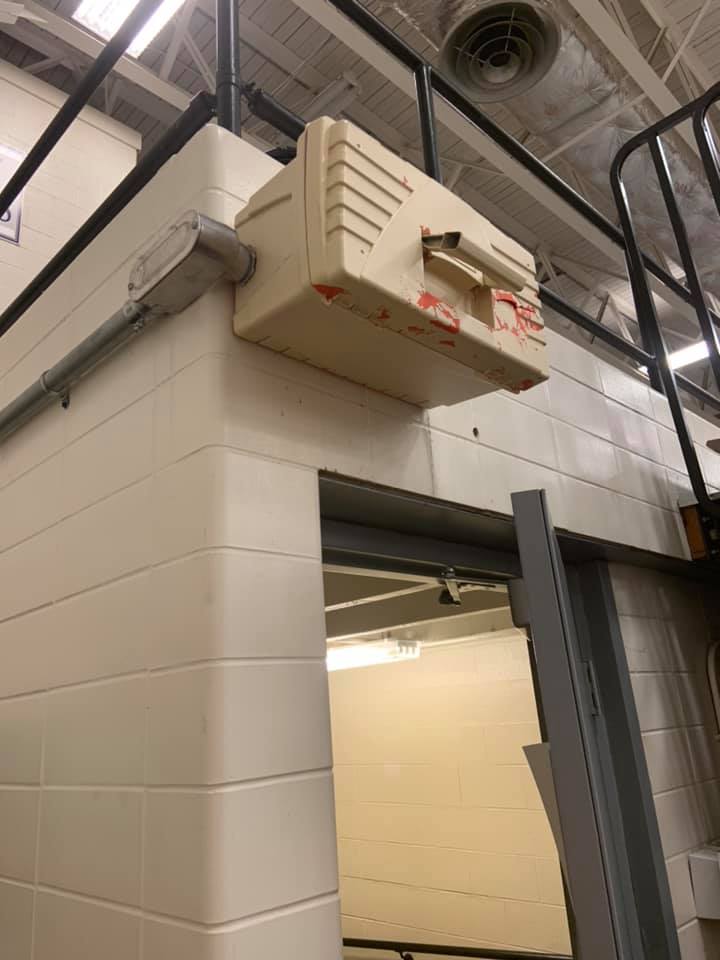

In an emergency system such as egress lighting, if the transfer switch is supplied by a single feeder, additional redundant transfer equipment is required by the NEC that is available so maintenance and repairs can take place. The Oregon amendments only require this if ________.

The building owner deems it necessary
The plan review requires it
It is a public school
It is a hospital

Reference : Table 1-E 700.5

43. 052 – Oregon Rule and Law Version 2023

1

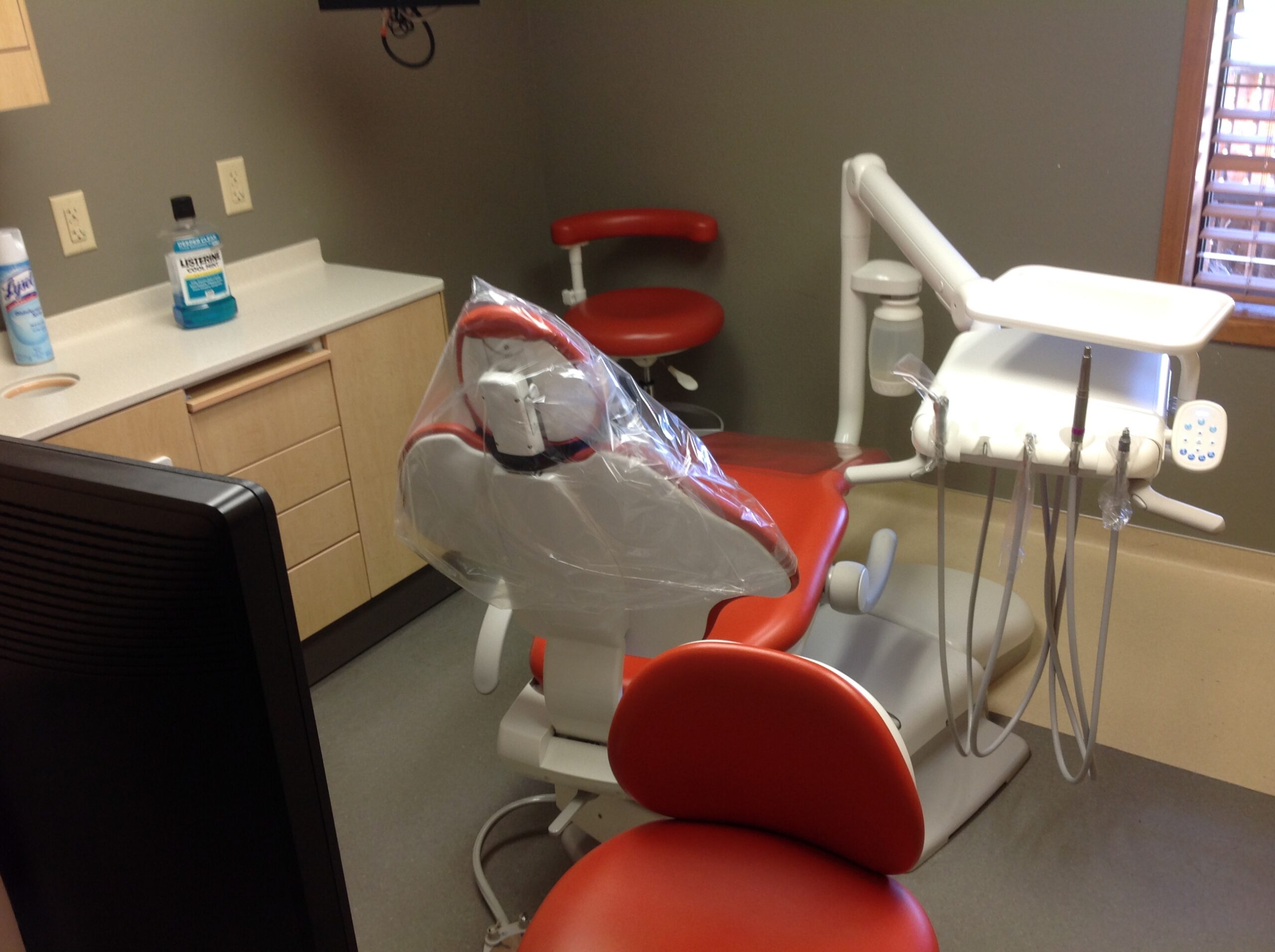

Part II of NEC Article 517 shall not apply to ________ areas.

All of these statements are true
Audiology
Physical therapy
Message therapy

Reference : Table 1-E , 517.10(B)

44. 152 – Oregon Rule and Law Version 2023

1

A limited maintenance specialty contractor may use a minor electrical permit label for ________.

A garbage disposal up to 20 amperes
A dishwasher up to 30 amperes
A fan up to 25 amperes
A furnace up to 30 amperes

Reference : 918-309-0220(5)

45. 092 – Oregon Rule and Law Version 2023

1

The Oregon State rules also modified the 2023 NEC arc fault requirements for dormitory unit receptacles by additionally adding ________ areas.

Study
Outside
Lobbies
Parking

Reference : Table 1-E 210.12(C)

46. 032 – Oregon Rule and Law Version 2023

1

In a dwelling unit, AFCI protection shall not be required for 120 volt, single phase, 15 and 20 ampere branch circuits supplying receptacles located in

All of these statements are true
Hallways
Laundry areas
Kitchens

Reference : Table 1-E , 210.12(B)ex 2

47. 080 – Oregon Rule and Law Version 2023

1

An example of a condition requirement for product use in a system that generates and distributes electricity that is not certified includes the ________.

System being designed by an engineer
Owner not being a wholesale generator
System is not connected to a utility grid
Turbines are 10KW

Reference : 918-261-0030

48. 115 – Oregon Rule and Law Version 2023

1

An unexpired permit holder ________ for an extension of time within which work may be completed.

May apply
Of a residential project only may apply
Of a commercial project only may apply
May not apply

Reference : 918-309-000(6)

49. 107 – Oregon Rule and Law Version 2023

1

Ground-Fault Circuit-Interrupter Protection (GFCI) for personnel was modified in the NEC to cover all receptacles for electric hand tools or portable lighting in work areas for welders. The Oregon amendments ________.

Did not adopt this code section
Requires GFCI protection for both 120 volt and 250 volt receptacles
Only require GFCI protection for 250 volt receptacles
Only require GFCI protection for 120 volt receptacles

Reference : Table 1-E 630.8

50. 044 – Oregon Rule and Law Version 2023

1

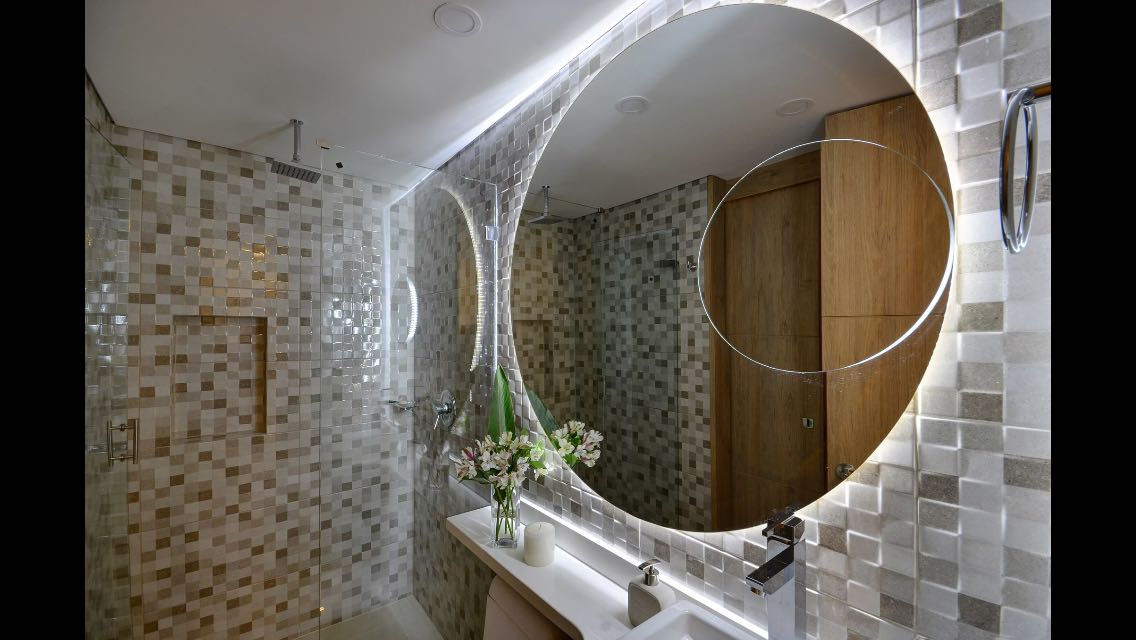

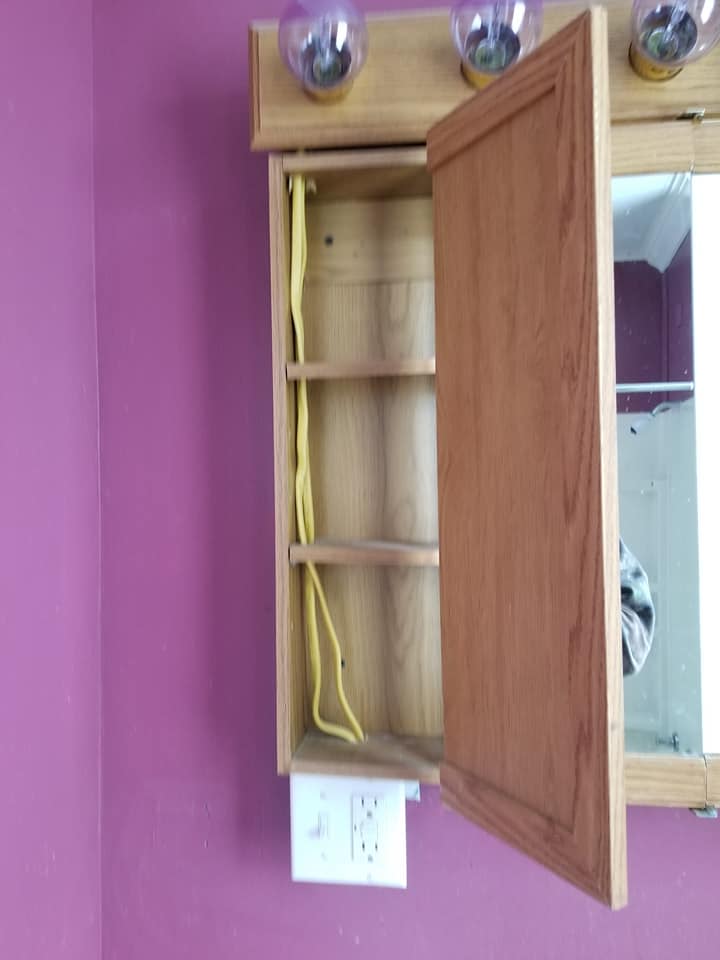

Receptacles shall not be installed within or above a bathtub,

Or shower stall
Or steam room
Nor within 12 feet vertically
Nor within 5 feet horizontally

Reference : Table 1-E , 406.9(C)

(509) 488-0899

1. 003 – Oregon Rule and Law Version 2023

2. 084 – Oregon Rule and Law Version 2023

3. 011 – Oregon Rule and Law Version 2023

4. 035 – Oregon Rule and Law Version 2023

5. 133 – Oregon Rule and Law Version 2023

6. 019 – Oregon Rule and Law Version 2023

7. 033 – Oregon Rule and Law Version 2023

8. 094 – Oregon Rule and Law Version 2023

9. 064 – Oregon Rule and Law Version 2023

10. 049 – Oregon Rule and Law Version 2023

11. 072 – Oregon Rule and Law Version 2023

12. 083 – Oregon Rule and Law Version 2023

13. 103 – Oregon Rule and Law Version 2023

14. 101 – Oregon Rule and Law Version 2023

15. 147 – Oregon Rule and Law Version 2023

16. 082 – Oregon Rule and Law Version 2023

17. 150 – Oregon Rule and Law Version 2023

18. 008 – Oregon Rule and Law Version 2023

19. 151 – Oregon Rule and Law Version 2023

20. 118 – Oregon Rule and Law Version 2023

21. 037 – Oregon Rule and Law Version 2023

22. 048 – Oregon Rule and Law Version 2023

23. 128 – Oregon Rule and Law Version 2023

24. 119 – Oregon Rule and Law Version 2023

25. 135 – Oregon Rule and Law Version 2023

26. 127 – Oregon Rule and Law Version 2023

27. 086 – Oregon Rule and Law Version 2023

28. 123 – Oregon Rule and Law Version 2023

29. 089 – Oregon Rule and Law Version 2023

30. 034 – Oregon Rule and Law Version 2023

31. 129 – Oregon Rule and Law Version 2023

32. 112 – Oregon Rule and Law Version 2023

33. 153 – Oregon Rule and Law Version 2023

34. 154 – Oregon Rule and Law Version 2023

35. 146 – Oregon Rule and Law Version 2023

36. 090 – Oregon Rule and Law Version 2023

37. 004 – Oregon Rule and Law Version 2023

38. 140 – Oregon Rule and Law Version 2023

39. 012 – Oregon Rule and Law Version 2023

40. 100 – Oregon Rule and Law Version 2023

41. 005 – Oregon Rule and Law Version 2023

42. 108 – Oregon Rule and Law Version 2023

43. 052 – Oregon Rule and Law Version 2023

44. 152 – Oregon Rule and Law Version 2023

45. 092 – Oregon Rule and Law Version 2023

46. 032 – Oregon Rule and Law Version 2023

47. 080 – Oregon Rule and Law Version 2023

48. 115 – Oregon Rule and Law Version 2023

49. 107 – Oregon Rule and Law Version 2023

50. 044 – Oregon Rule and Law Version 2023

Inactivity Detected
